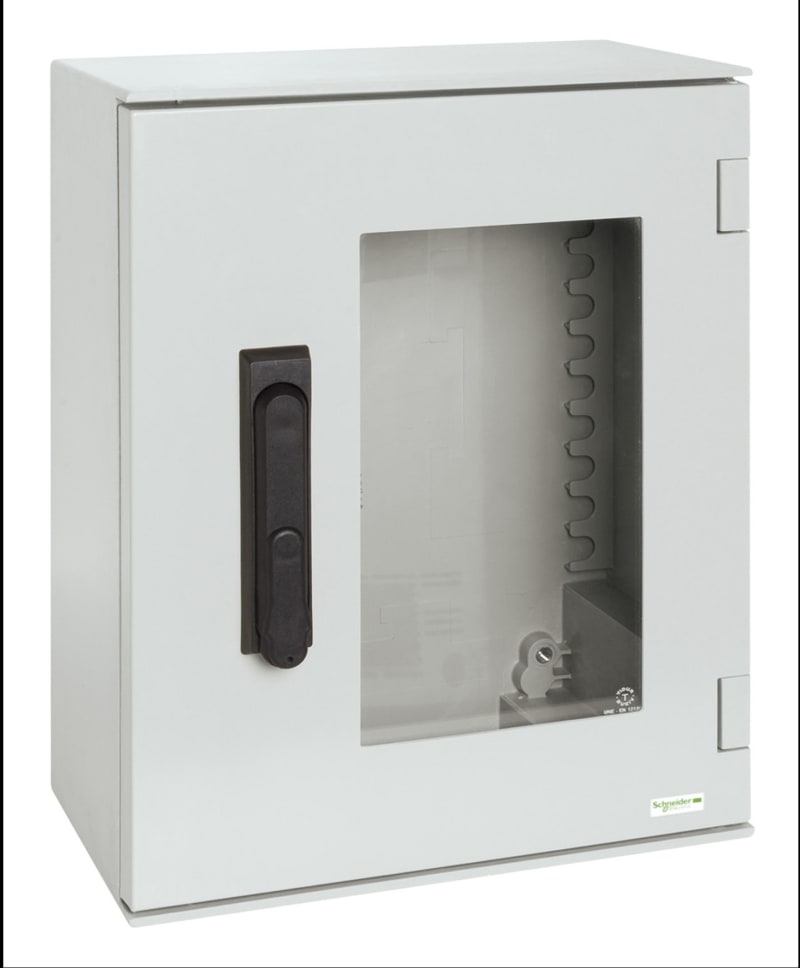

Schneider Electric wall-mounting encl. polyester monobloc IP66 747X536X300MM 3P.LOCK glazed door NSYPLM75TVG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLM75TVG THALASSA 745X535X300 GLA 3p lock.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLM75TVG
- EAN / GTIN
- 3606480776731
- Sales unit
- pcs
- Dimensions
- 745×535×300
- Range
- PanelSeT
- Device short name
- PLM
- Enclosure type
- Multi-purpose
- Category
- Compact enclosure
- Nominal height
- 747 mm
- Nominal width
- 536 mm
- Nominal depth
- 300 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 door; 1 handle lock
- Door type
- Transparent
- Lock type
- 3 points lock, handle with 1242E key lock
- Number of locks
- 1
- Mounting plate description
- Without mounting plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Body: polyester reinforced with fibreglass; Door: tempered glass
- Colour
- Grey (RAL 7035)
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for operation
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 536 mm
- Height
- 747 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of doors
- 1
- Material quality
- Polyester
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 563 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776731
- SAP 1000752643
- Code 8489628
Product Documentation
More from Schneider Electric
Schneider Electric
Heat detector EDC-50/A2S
FFS06724652
Schneider Electric
Schneider Electric light block with body/fixing collar with BA9S incandesc. bulb 220...240V 1NO+1NC ZB4BW045
Schneider Electric
Cover 3P seriekopl. NSX DC
LV438345
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250R, 200KA/415VAC, 4 poles, MicroLogic 5.2E trip unit 160A C25R45E160
Schneider Electric
Schneider Electric Wander socket outlet, Mureva PK, Fast connection, 32A, 3P+N+E, 400V, IP67 PKY32M735
Schneider Electric

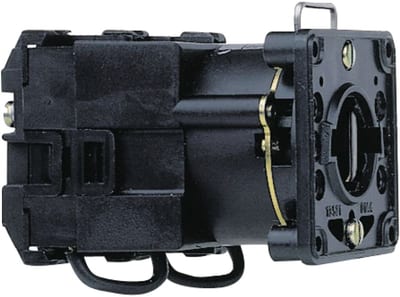

CAM SWITCH,BCD-Coded (K1D011B)
Schneider Electric

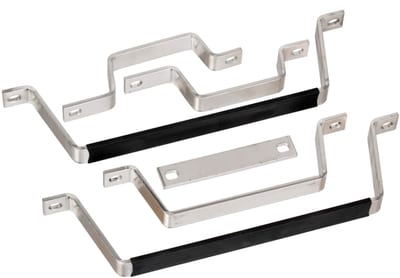

Schneider Electric TeSys F - set of connections - 3P - reversing LA9FJ976
Schneider Electric

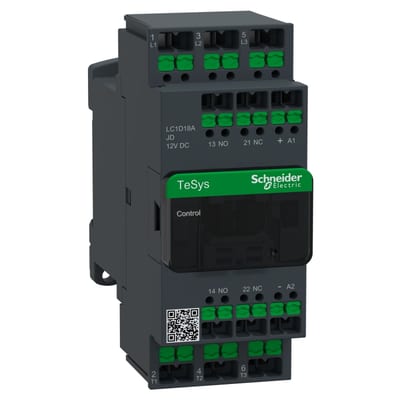

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 12V DC coil, snap-in terminals LC1D18AJD
