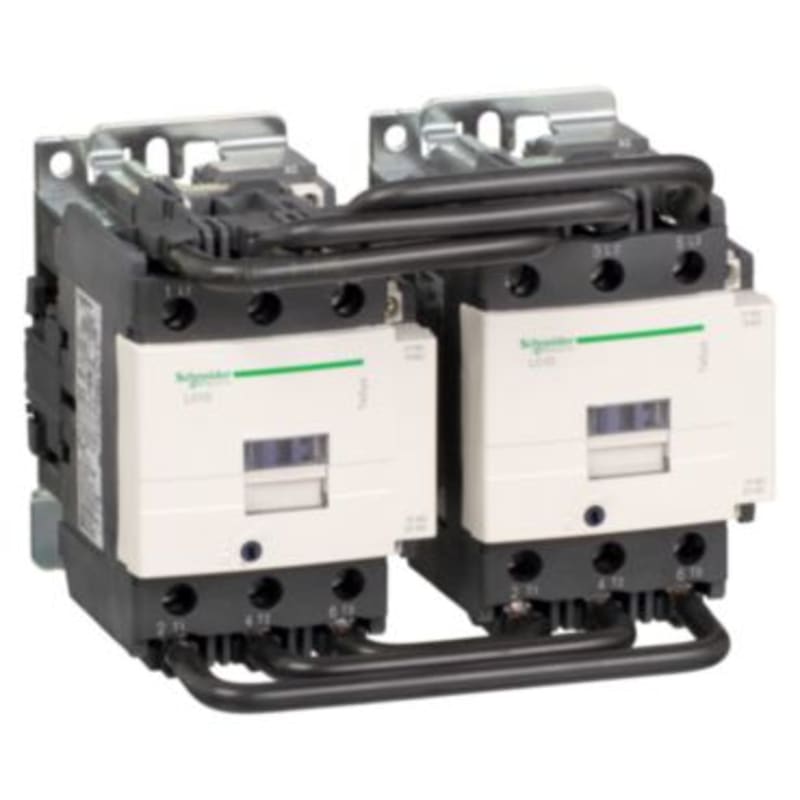

Schneider Electric TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 230 V AC coil LC2D95P7

Schneider Electric LC2D95P7 Reversing switch 95A.

Manufacturer part number (MPN)

LC2D95P7 EAN / GTIN: 3389110458497 Sales unit: pcs Package quantity: 2 pcs Voltage: 230 V AC Range: TeSys Product name: TeSys Deca Product or component type: Reversing contactor Device short name: LC2D Contactor application: Resistive load; Motor control Utilisation category: AC-1; AC-3; AC-3e; AC-4 Device presentation: Preassembled with reversing power busbar Poles description: 3P power pole contact composition: 3 NO [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC [Ie] rated operational current: 125 A (at <60 °C) at <= 690 V AC-1 for power circuit; 95 A (at <60 °C) at <= 440 V AC-3 for power circuit; 95 A (at <60 °C) at <= 440 V AC-3e for power circuit; 66.7 A (at <60 °C) at <= 400 V AC-4 for power circuit Motor power kW: 25 kW at 220...230 V AC 50 Hz (AC-3); 45 kW at 380...400 V AC 50 Hz (AC-3); 45 kW at 415...440 V AC 50 Hz (AC-3); 55 kW at 500 V AC 50 Hz (AC-3); 45 kW at 660...690 V AC 50 Hz (AC-3); 15 kW at 400 V AC 50 Hz (AC-4); 25 kW at 220...230 V AC 50 Hz (AC-3e); 45 kW at 380...400 V AC 50 Hz (AC-3e); 45 kW at 415...440 V AC 50 Hz (AC-3e); 55 kW at 500 V AC 50 Hz (AC-3e); 45 kW at 660...690 V AC 50 Hz (AC-3e) Motor power hp: 20 hp at 200/208 V AC 60 Hz for 3 phases motors; 7.5 hp at 115 V AC 60 Hz for 1 phase motors; 15 hp at 230/240 V AC 60 Hz for 1 phase motors; 25 hp at 230/240 V AC 60 Hz for 3 phases motors; 60 hp at 460/480 V AC 60 Hz for 3 phases motors; 60 hp at 575/600 V AC 60 Hz for 3 phases motors Control circuit type: AC at 50/60 Hz [Uc] control circuit voltage: 230 V AC 50/60 Hz Auxiliary contact composition: 2 NO + 2 NC [Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947 Overvoltage category: III [Ith] conventional free air thermal current: 10 A (at 60 °C) for signalling circuit; 125 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1100 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 1100 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 135 A 40 °C - 10 min for power circuit; 400 A 40 °C - 1 min for power circuit; 800 A 40 °C - 10 s for power circuit; 1100 A 40 °C - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1; 200 A gG at <= 690 V coordination type 1 for power circuit; 160 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 0.8 mOhm - Ith 125 A 50 Hz for power circuit [Ui] rated insulation voltage: Power circuit: 1000 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-1; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified Electrical durability: 1.2 Mcycles 95 A AC-3; 1.3 Mcycles 125 A AC-1; 1.2 Mcycles 95 A AC-3e Power dissipation per pole: 12.5 W AC-1; 7.2 W AC-3; 7.2 W AC-3e Front cover: With Interlocking type: Mechanical Mounting support: Rail; Plate Standards: EN/IEC 60947-1; EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4 Product certifications: UL; CSA; RINA; GOST; CCC; DNV; LROS (Lloyds register of shipping); GL; BV; UKCA Connections - terminals: Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid; Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid; Control circuit: screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end; Power circuit: connector 1 cable(s) 4…50 mm²flexible without cable end; Power circuit: connector 2 cable(s) 4…25 mm²flexible without cable end; Power circuit: connector 1 cable(s) 4…50 mm²flexible with cable end; Power circuit: connector 2 cable(s) 4…16 mm²flexible with cable end; Power circuit: connector 1 cable(s) 4…50 mm²solid; Power circuit: connector 2 cable(s) 4…25 mm²solid Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm; Power circuit: 12 N.m - on connector hexagonal screw head 4 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Operating time: 20...35 ms closing; 6...20 ms opening Safety reliability level: B10d = 1.3 Mcycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20 Mcycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 4 Mcycles Maximum operating rate: 3600 cyc/h 60 °C Coil technology: Without built-in suppressor module Control circuit voltage limits: 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz; 0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz; 1...1.1 Uc (55…70 °C):operational AC 50/60 Hz Inrush power in VA: 245 VA 60 Hz cos phi 0.75 (at 20 °C); 245 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 26 VA 60 Hz cos phi 0.3 (at 20 °C); 26 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 6…10 W at 50/60 Hz Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Insulation resistance: > 10 MOhm for signalling circuit IP degree of protection: IP20 front face conforming to IEC 60529 Climatic withstand: conforming to IACS E10 Protective treatment: TH conforming to IEC 60068-2-30 Pollution degree: 3 Ambient air temperature for operation: -40…60 °C; 60…70 °C with derating Ambient air temperature for storage: -60…80 °C Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz; Shocks contactor open: 8 Gn for 11 ms; Vibrations contactor closed: 3 Gn, 5...300 Hz; Shocks contactor closed: 10 Gn for 11 ms Height: 127 mm Width: 182 mm Depth: 158 mm Product weight: 3.2 kg Number of Units in Package 1: 1 Number of Units in Package 2: 2 Country of origin: CZ Warranty (in months): 18 Function: Reversing contactor Rated operation power at AC-3, 400 V: 45 kW Number of normally open contacts as main contact: 3 Number of auxiliary contacts as normally open contact: 2 Number of auxiliary contacts as normally closed contact: 2 Rated operation current Ie at AC-3, 400 V: 95 A Suitable for rail mounting: No Rated control supply voltage AC 50 Hz: 230 V Rated control supply voltage AC 60 Hz: 230 V Voltage type (operating voltage): AC Degree of protection (IP): IP20 Type of electrical connection of main circuit: Screw connection Operating voltage AC 50 Hz: 440 V Operating voltage AC 60 Hz: 440 V Voltage type for actuating: AC Rated operation power NEMA: 44.8 kW

HS Code

8536.49

• EAN 3389110458497
• SAP 1000019603
• Code 8149151
