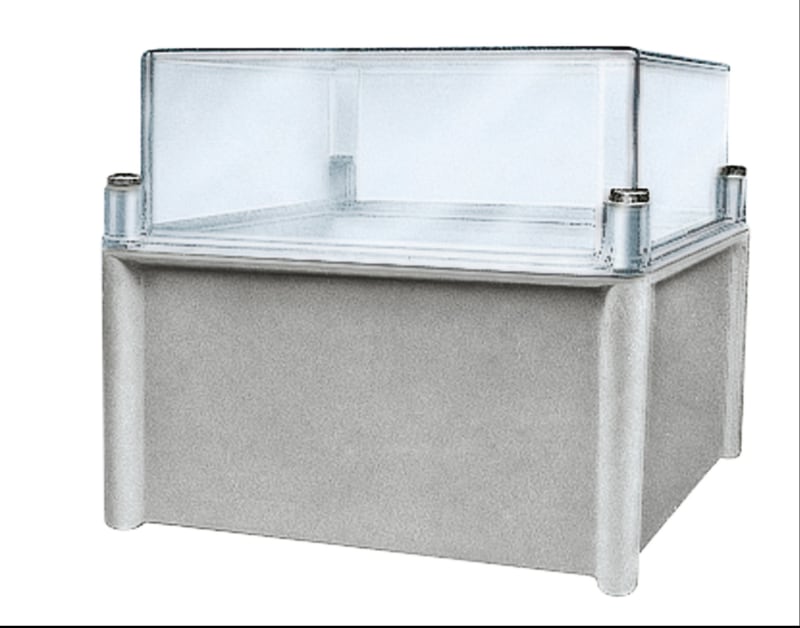

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 54X54X23CM NSYPLS5454AG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLS5454AG Transp PLS 7035 box54x54x23.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLS5454AG
- EAN / GTIN
- 3606480777042
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT PLS
- Device short name
- PLS
- Enclosure type
- Multi-purpose
- Category
- Insulating modular box
- Nominal height
- 540 mm
- Nominal width
- 540 mm
- Nominal depth
- 230 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 cover: on enclosure; 1 rear part: on enclosure; locking screws
- Body type
- One piece moulded
- Type of front cover
- High transparent cover
- Lock type
- Slot screw
- Removable parts
- Cover locking screw
- Material
- Cover: polycarbonate; Rear: polyester reinforced with fibreglass
- Colour
- Body: grey (RAL 7035)
- Standards
- NEMA 4X; NEMA classification 13; IEC 62208
- Product certifications
- UL
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -30…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 56.000 cm
- Package 1 Length
- 55.500 cm
- Package 1 Weight
- 5.998 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 28
- Package 2 Height
- 184.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 197.800 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 540 mm
- Height
- 540 mm
- Depth
- 230 mm
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK09
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480777042
- SAP 1000752675
- Code 8489666
Product Documentation
More from Schneider Electric
Schneider Electric

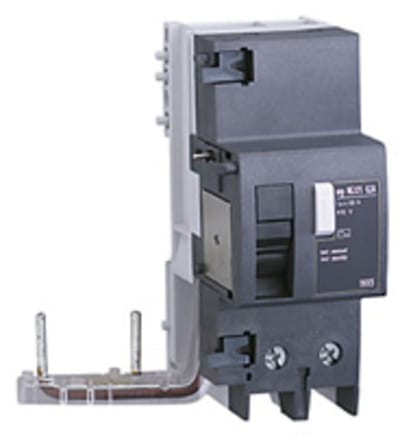

VIGI NG125 2-63 1000 MA
19031
Schneider Electric

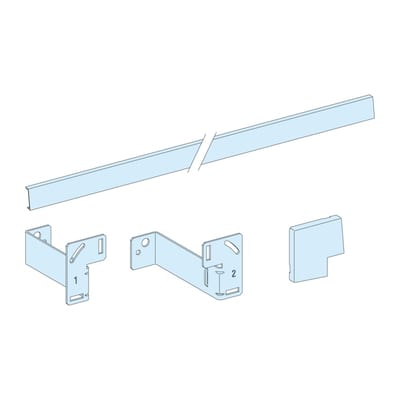

INNFELLINGSETT-6-18MOD-IP30-PRISMASET G (LVS08819)
Schneider Electric

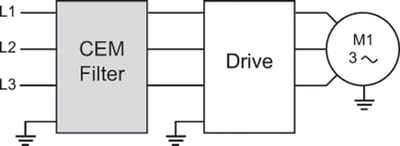

EMC additional filter IP20 5A
VW3A4701
Schneider Electric

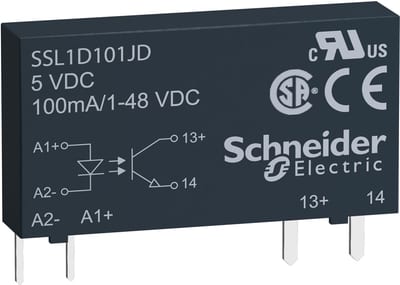

Schneider Electric Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC SSL1D101JD
Schneider Electric

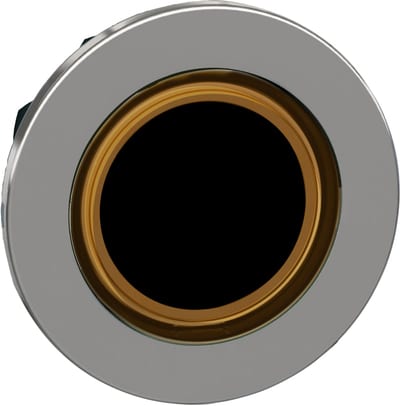

Illuminated Push Button flush org ring (ZB4FW953)
Schneider Electric
Met.plate for 36X72PLS
NSYPMM3672
Schneider Electric

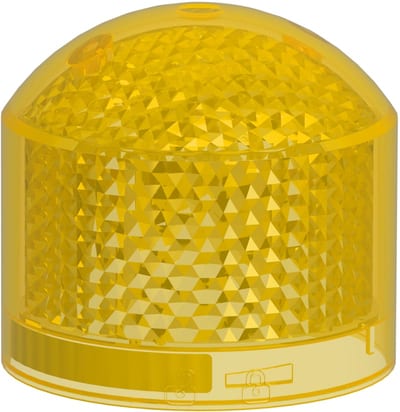

Light Unit for top 2J flash LED in yellow
XVB7L68
Schneider Electric

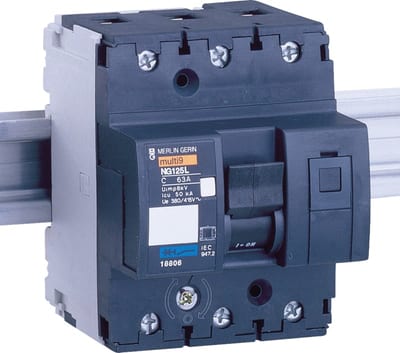

NG125L/D 10-3 Modular Power Switch
