Schneider Electric
EMC additional filter IP20 5A
Part numberVW3A4701EAN / GTIN3606480736506HS code8548.90
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

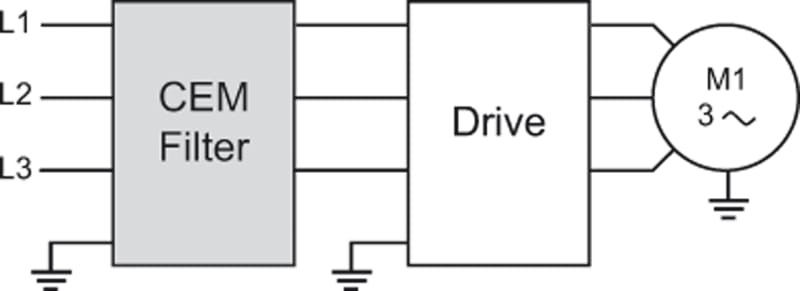

Schneider Electric VW3A4701 EMC additional filter IP20 5A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4701
- EAN / GTIN
- 3606480736506
- Sales unit
- pcs
- IP rating
- IP20
- Rated current
- 5 A
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar Process ATV900; Altivar Process ATV600
- Product compatibility
- Variable speed drive ATV630 wall mount, motor: 0.75 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 1.5 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 2.2 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 0.75 kW, 200...240 V; Variable speed drive ATV630 wall mount, motor: 1.5 kW, 200...240 V; Variable speed drive ATV650 wall mount, motor: 0.75 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 1.5 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 2.2 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 0.75 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 1.5 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 2.2 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 0.75 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 1.5 kW, 200...240 V; Variable speed drive ATV950 wall mount, motor: 0.75 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 1.5 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 2.2 kW, 380...480 V
- Product specific application
- Radio interference input filter
- [In] rated current
- 8 A
- Thermal losses
- 1.28 W
- Network number of phases
- Three phase
- Electrical connection
- Terminal 4 mm² 12 AWG
- Maximum motor cable length
- 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V; 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V
- maximum earth leakage current
- 7.6 mA at 400 V 50 Hz TN; 7.6 mA at 400 V 50 Hz TT
- power supply voltage
- 380…480 V; 200…240 V
- Tolerance
- 10 %
- Mechanical robustness
- Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3
- Width
- 75 mm
- Height
- 220 mm
- Depth
- 130 mm
- Product weight
- 2 kg
- IP degree of protection
- IP20mounting side by side; IP21with kit VW3A47901
- Relative humidity
- 5…95 % without condensation conforming to IEC 61800-5-1
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Standards
- IEC 61800-3
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736506
- SAP 1000708124
- Code 8428698
Product Documentation
Document preview: Schneider Electric VW3A4701 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC SSL1D101JD
Schneider Electric
Illuminated Push Button flush org ring (ZB4FW953)
Schneider Electric
Met.plate for 36X72PLS
NSYPMM3672
Schneider Electric
Light Unit for top 2J flash LED in yellow
XVB7L68
Schneider Electric
NG125L/D 10-3 Modular Power Switch
18848
Schneider Electric

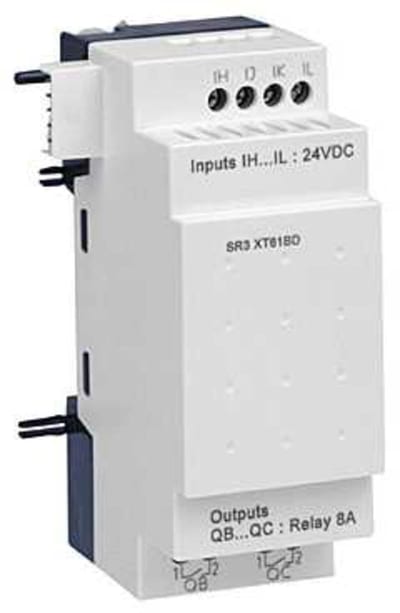

Zelio Logic Extension 4I/2O 24V (SR3XT61BD)
Schneider Electric
Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 1000X750X420 IP44 NSYPLAT1074G
Schneider Electric

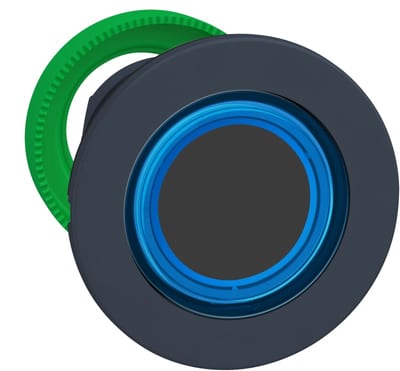

Illuminated Push Button flush blue ring (ZB5FW963)
