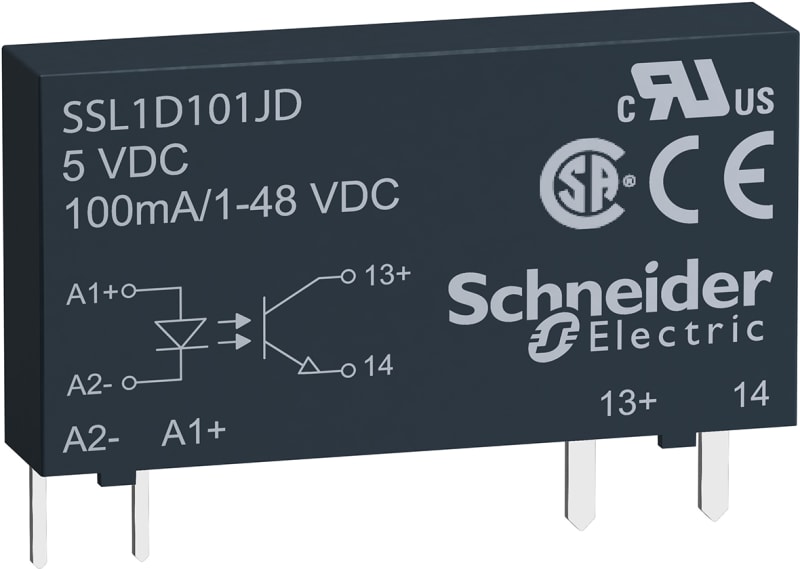

Schneider Electric Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC SSL1D101JD

Schneider Electric SSL1D101JD 1 Phase SSR 48VDC 100MA 12.

Manufacturer part number (MPN)

SSL1D101JD EAN / GTIN: 3606480579677 Sales unit: pcs Package quantity: 10 pcs Voltage: 48 V DC Range of product: Harmony Solid State Relays Device short name: SSL Network number of phases: 1 phase [Uc] control circuit voltage: 3...12 V Output switching mode: DC switching Ui rated insulation voltage: 48 V Insulation resistance: > 100 MOhm at 500 V DC Electromagnetic compatibility: Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2; Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6; Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4; Surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5; Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5; Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1; Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 5.3 kV for input to case conforming to IEC 62314; 5.3 kV for input/output circuit conforming to UL 508; 5.3 kV for input/output circuit conforming to IEC 62314; 5.3 kV output to case conforming to -; 5.3 kV output to case conforming to IEC 62314; 5.3 kV for input to case conforming to UL 508; 5.3 kV output to case conforming to UL 508 Mounting support: Socket [In] rated current: 0.1 A Output voltage: 1...48 V DC Capacitance unbalance: 2.5 pF input/output minimum switching voltage: 3 V DC turn-on Maximum switching voltage: 1 V DC turn-off Input current: 4 mA Input impedance: 1250 Ohm Solid state output type: Transistor output; DC switching Load current: 0.001…0.1 A Transient Overvoltage: 60 V Maximum operating frequency: 500 Hz Surge current: 0.3 A for 10 ms Maximum voltage drop: <1 V on-state Maximum leakage current: 0.001 mA off-state Response time: 0.02 ms (turn-on); 0.13 ms (turn-off) Overvoltage category: III Width: 5 mm Height: 28 mm Depth: 15 mm Product weight: 0.0041 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 3750 V for input/output Pollution degree: 2 Standards: IEC/EN 60947-1; IEC/EN 62314; UL 508; C22.2 No. 14 Product certifications: cURus; CSA; EAC; CE; UKCA Marking: CE IP degree of protection: IP00 Ambient air temperature for operation: -20…80 °C Ambient air temperature for storage: -20…85 °C Number of Units in Package 1: 1 Number of Units in Package 2: 12 Number of Units in Package 3: 1080 Country of origin: MX Warranty (in months): 18 Degree of protection (IP): IP00 Voltage type for actuating: DC Rated operation current Ie at AC-1: 0.1 A Rated operation current Ie at AC-3: 0.1 A Rated operation current Ie at AC-51: 0.1 A Rated operation current Ie at AC-53a: 0.1 A Rated operation current Ie at AC-53b: 0.1 A Number of phases: 1 Suitable for distribution board: Yes Switching at zero-crossing: No

HS Code

8536.41

• EAN 3606480579677
• SAP 1000665035
• Code 8512527
