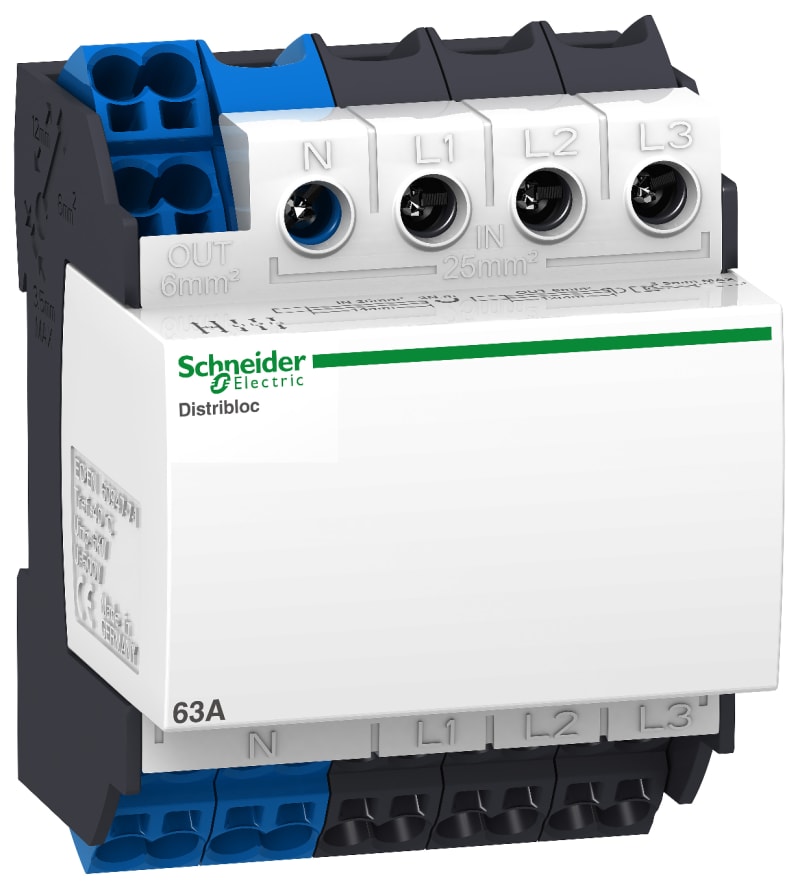

Schneider Electric Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connection top LVS04040
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04040 Distribution block - 63A - 4 pole - supply feed from top.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04040
- EAN / GTIN
- 3606482164567
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Rated current
- 63 A
- Number of poles
- 4P
- Range
- Linergy
- Product or component type
- Distribution block
- Product name
- Linergy DX
- Range compatibility
- Prisma; PrismaSeT; Pragma
- Product compatibility
- Spacial enclosures
- IP degree of protection
- IPxx B
- Location of connection
- Top
- Mounting support
- DIN rail
- Poles description
- 4P
- [Ue] rated operational voltage
- 440 V AC
- [Ui] rated insulation voltage
- 500 V AC
- [Uimp] rated impulse withstand voltage
- 6 kV
- [Ie] rated operational current
- 63 A at 40 °C
- [In] rated current
- 63 A at 40 °C
- Connections - terminals
- Supply: tunnel type terminal16 mm² (flexible) ; Supply: tunnel type terminal25 mm² (rigid) ; Distribution: spring terminal (phase) , 12 x 2.5…6 mm² (flexible) ; Distribution: spring terminal (phase) , 12 x 2.5…6 mm² (rigid) ; Distribution: spring terminal (neutral) , 12 x 2.5…6 mm² (flexible) ; Distribution: spring terminal (neutral) , 12 x 2.5…6 mm² (rigid)
- 9 mm pitches
- 8
- Total number of 18 mm modules
- 4
- Height
- 96.5 mm
- Width
- 72 mm
- Depth
- 62 mm
- Product weight
- 0.29 kg
- Pollution degree
- 3
- Resistance to incandescent wire
- 960 °C conforming to IEC 60695-2-11
- Standards
- IEC 60947-7-1; IEC 61439-2; IEC 61439-1
- Product certifications
- ASEFA
- Warranty (in months)
- 18
- Nominal current
- 63 A
- Mounting method
- DIN rail
- Connection type
- Screw-/spring clamp connection
- Number of inputs
- 4
- Number of outputs
- 12
- Contact safe
- Yes
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for fine strand conductors without cable end sleeve
- Yes
- Suitable for extra fine-strand conductors
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482164567
- SAP 1200657929
- Code 83090546
