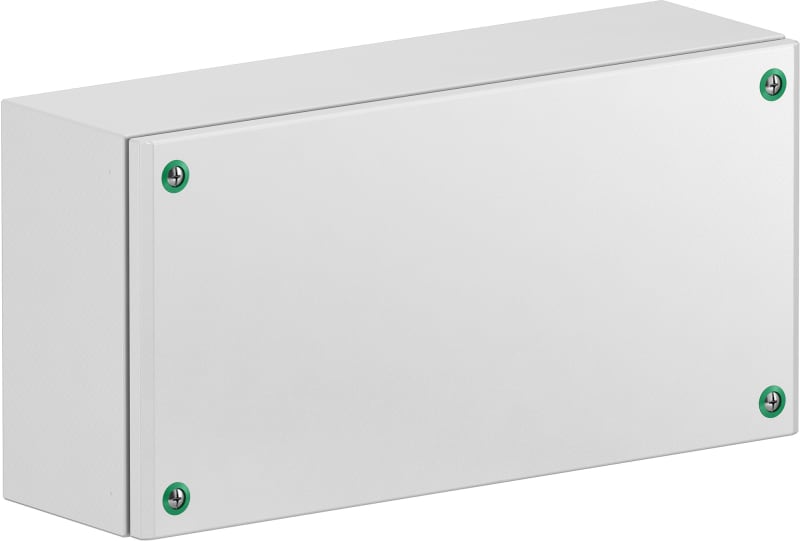

Schneider Electric NSYSBM15308 Metal industrial box plain door H150XW300XD80 IP66 IK10 RAL 7035
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYSBM15308 Metal industrial box plain door H150XW300XD80 IP66 IK10 RAL 7035 is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Dimensions: 150×300×80; Range: PanelSeT; Product name: PanelSeT SBM; Device application: Multi-purpose; Device short name: SBM.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSBM15308
- EAN / GTIN
- 3606480520037
- Sales unit
- pcs
- Dimensions
- 150×300×80
- Range
- PanelSeT
- Product name
- PanelSeT SBM
- Device application
- Multi-purpose
- Category
- Industrial box
- Device short name
- SBM
- enclosure type
- Flat face box
- Enclosure nominal height
- 150 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 4 cover screw; 1 cover; 1 body
- Body type
- Single piece body folded and welded
- Type of front cover
- Plain door
- Cover fixing
- Half turn metal screw
- Lock type
- Captive screw PZ2 outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Sheet steel
- Surface finish
- Polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV-GL; UL; BV
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for storage
- -35…60 °C
- Operating temperature
- -35…80 °C
- Product weight
- 1.754 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.000 cm
- Package 1 Width
- 16.500 cm
- Package 1 Length
- 31.500 cm
- Package 1 Weight
- 1.876 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 112
- Package 2 Height
- 78.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 220.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 300 mm
- Height
- 150 mm
- Depth
- 80 mm
- RAL-number
- 7035
- Number of doors
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480520037
- SAP 1000499562
- Code 8861703
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys LE - enclosed star-delta starter - 9 A - 230 V AC coil LE3D09P7
Schneider Electric
Switch Block 3P 32A without GREP
V1
Schneider Electric
Schneider Electric LVS04602 LINERGY LGYE VERTICAL CONNECTION 1600A
Schneider Electric
Connection Adapter PI-BASE 3P (LV432584)
Schneider Electric
Connector S-One CAT. 6A UTP 12 PK
VDIB1771XU12
Schneider Electric

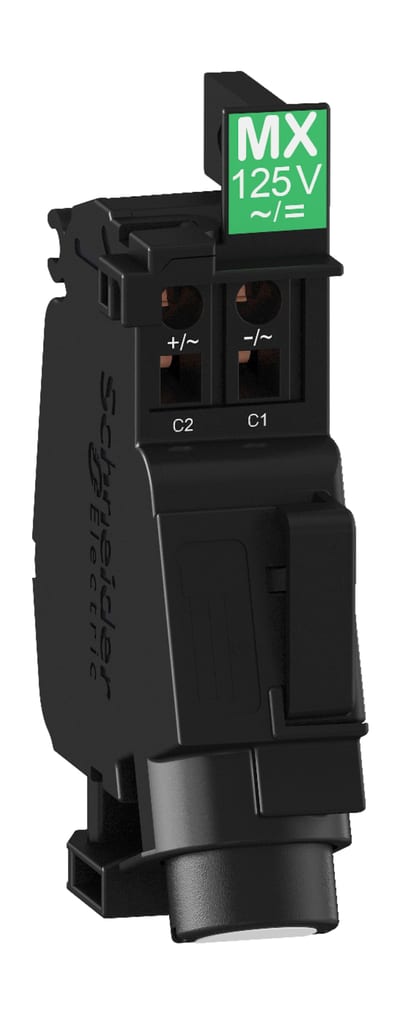

Schneider Electric shunt trip (spring) MX-208...240 V AC 60HZ-220…240 50HZ-277 V AC 60HZ-250 V DC LV426844
Schneider Electric

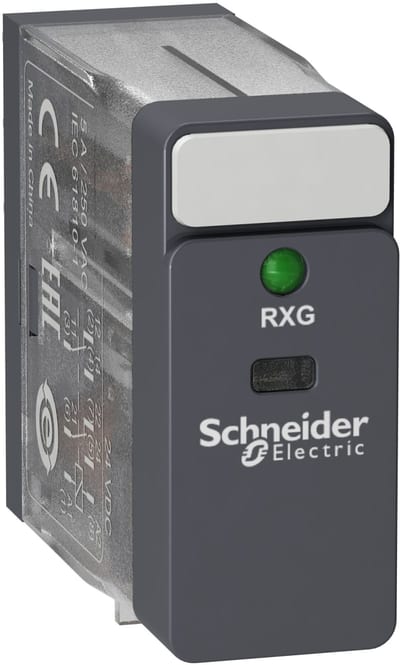

Schneider Electric Interface plug-in relay, 5 A, 2 CO, LED, 24 V DC RXG23BD
Schneider Electric

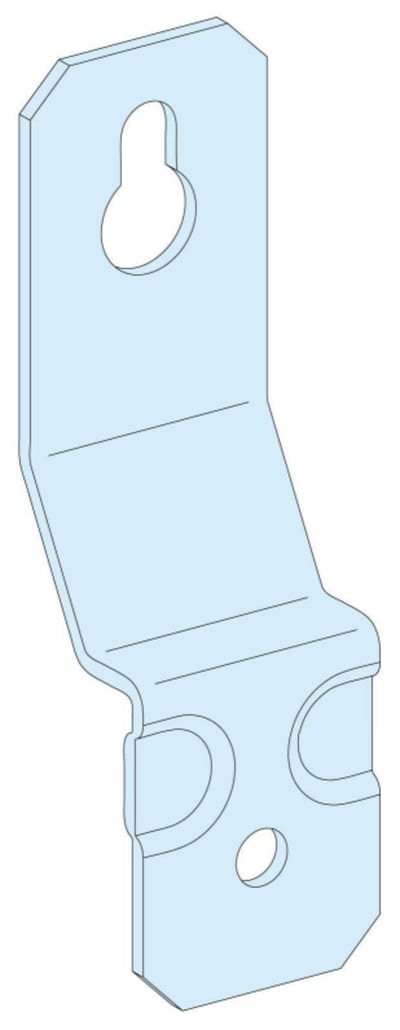

Wall Brackets for PrismaSeT G-4 pcs
