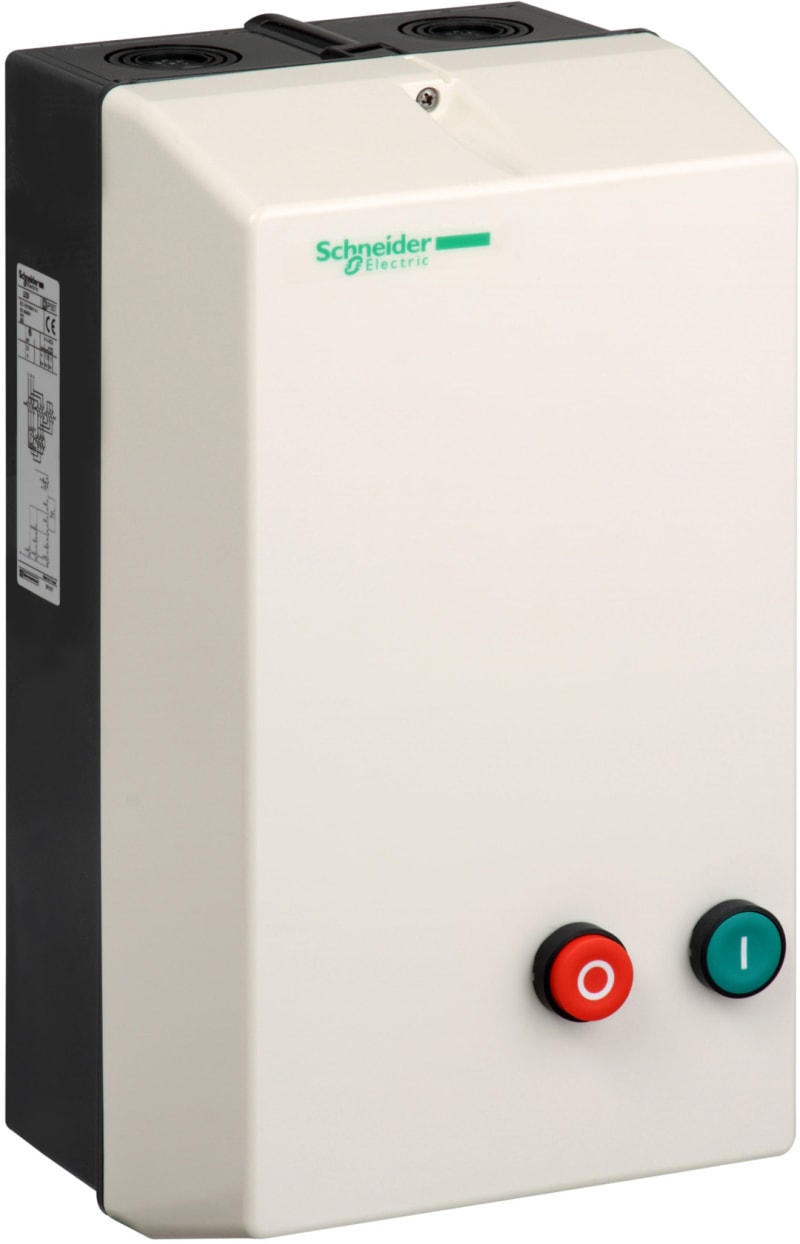

Schneider Electric TeSys LE - enclosed star-delta starter - 9 A - 230 V AC coil LE3D09P7

Schneider Electric LE3D09P7 Y/D-IP65- 7,5kW/400V-coil230V.

Manufacturer part number (MPN)

LE3D09P7

EAN / GTIN

3389110625714

Sales unit

pcs

Power

7.5 kW

IP rating

IP65

Range

TeSys

Product name

TeSys LE

Device short name

LE3D

Product or component type

Enclosed star-delta starter

Device application

Standard

Material

Polycarbonate

Utilisation category

AC-3

Device composition

Thermal overload relay ordered separately; Star-delta contactors; Mechanical interlock

Motor power kW

4 kW at 220 V AC 50/60 Hz; 7.5 kW at 380/400 V AC 50/60 Hz; 7.5 kW at 415 V AC 50/60 Hz; 7.5 kW at 440 V AC 50/60 Hz

[Uc] control circuit voltage

230 V AC 50/60 Hz

Control type

Push-button start green I; Push-button stop/reset red O

Cable entry number

2 ISO20 top; 2 ISO25 top; 2 ISO32 top; 2 ISO40 top; 2 ISO20 bottom; 2 ISO25 bottom; 2 ISO32 bottom; 2 ISO40 bottom

Width

186 mm

Height

348 mm

Depth

175.5 mm

Product weight

3.65 kg

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 60529

Standards

IEC 60947-4-1

Ambient air temperature for operation

-5…40 °C

Environmental characteristic

Standard environment

Product certifications

UKCA

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

FR

Warranty (in months)

18

Function

Star-delta contactor

Rated operation power at AC-3, 400 V

7.5 kW

Number of normally open contacts as main contact

3

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated operation current Ie at AC-3, 400 V

9 A

Suitable for rail mounting

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Voltage type (operating voltage)

AC

Degree of protection (IP)

IP65

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

220–440 V

Operating voltage AC 60 Hz

220–440 V

Voltage type for actuating

AC

HS Code

8537.10
