Upper sealed plate B850-IP30-PRISMASET G
Pricing
Request a quote
We reply within 24 hours
Product Description

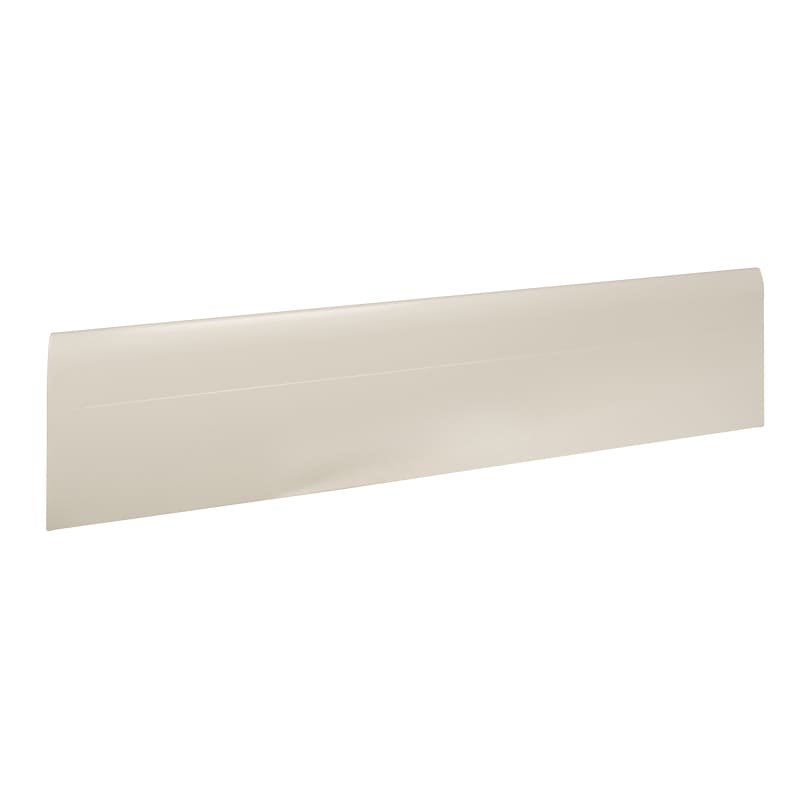

Schneider Electric LVS01070 Upper sealed plate B850-IP30-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS01070 EAN / GTIN: 3606481933010 Sales unit: pcs IP rating: IP30 Range: PrismaSeT Range of product: PrismaSeT G Product or component type: Plain plate Range compatibility: PrismaSeT PrismaSeT G enclosure installation description: Floor-standing enclosure - width 850 mm Standards: IEC 61439-1 for enclosure; IEC 61439-2 for enclosure Product certifications: ASTA material: Treated sheet steel Protective treatment: Electrophoresis treatment and hot-polymerised polyester epoxy powder Surface finish: Textured; Matt Colour: White (RAL 9003) Width: 840 mm Height: 30 mm Depth: 205 mm Product weight: 1.76 kg Quantity per set: Set of 1 IP degree of protection: IP30 for enclosure IK degree of protection: IK08 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.0 cm Package 1 Width: 20.0 cm Package 1 Length: 113.5 cm Package 1 Weight: 1.842 kg Unit Type of Package 2: P12 Number of Units in Package 2: 12 Package 2 Height: 38.0 cm Package 2 Width: 80.0 cm Package 2 Length: 120.0 cm Package 2 Weight: 34.0 kg Warranty (in months): 18 RAL-number: 9003 Suitable for enclosure building width: 850 mm Suitable for enclosure building depth: 260 mm Suitable for outdoor set-up: No Surface finishing: Powder coating Country of origin: France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481933010
- SAP 1200547459
- Code 82880433
