Gland Plate for FL21 B300-PRISMASETG-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description

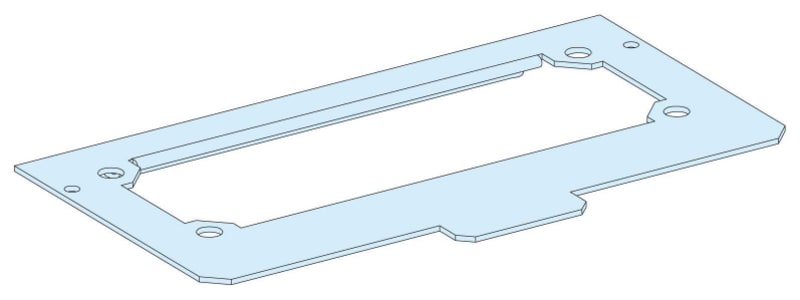

Schneider Electric LVS08875 Flange plate-metal-with cut-out for FL21 flanges-width 300mm-cable compartment-for PrismaSeT G-IP30.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08875
- EAN / GTIN
- 3606481879448
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP30
- Range of product
- PrismaSeT G
- Range
- PrismaSeT
- Range compatibility
- PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT G gland plate
- Product or component type
- Support gland plate
- Accessory / separate part category
- Enclosure accessory
- Product compatibility
- IP31 enclosure; IP43 enclosure; IP30 enclosure
- Enclosure/cubicle description
- Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm
- Type of gland plate
- FL21 cut-out
- Mounting location
- Top or bottom of the enclosure
- Material
- Treated sheet steel
- Quantity per set
- Set of 1
- Width
- 300 mm
- Depth
- 180 mm
- Product weight
- 0.36 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Number of Units in Package 3
- 160
- Warranty (in months)
- 18
- Model
- Blind
- Thickness
- 2 mm
- Surface protection
- Powder coating
- Pre-stamping
- No
- Thread type
- Metric
- Degree of protection (NEMA)
- 1
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879448
- SAP 1200547408
- Code 82879242
Product Documentation
