Wall Brackets SBX 304L 4 pcs/pk
Pricing
Request a quote
We reply within 24 hours
Product Description

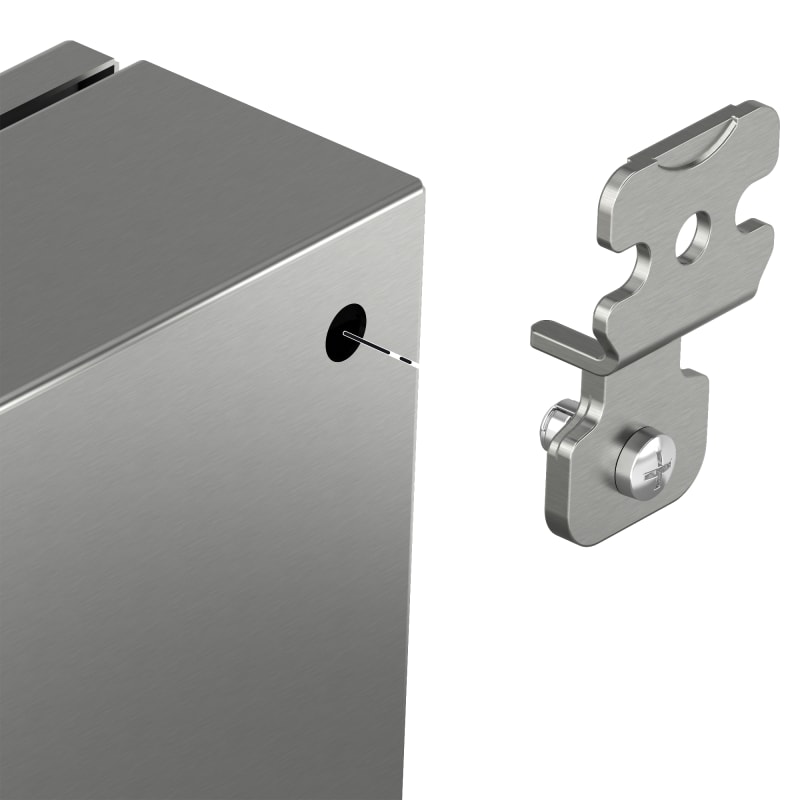

Schneider Electric NSYAEFPFSBX — 4 Wall fixing lug in Stainless steel AISI 304 for PanelSeT SBX.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAEFPFSBX
- EAN / GTIN
- 3606481714763
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Fixing accessory
- Product or component type
- Wall fixing support
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Rear of enclosure
- Installation accessory type
- Horizontal or vertical position
- Range compatibility
- PanelSeT SBX
- Device composition
- fixing screws; 4 lug; 4 pre-mounted sealing gasket
- Quantity per set
- Set of 4
- Material
- Stainless steel 304
- Permanent permissible load
- 70 kg
- Height
- Real: 74 mm
- Width
- Real: 42 mm
- Depth
- Wall-enclosure separation : 12 mm
- Product weight
- 0.267 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 7.500 cm
- Package 1 Length
- 15.500 cm
- Package 1 Weight
- 288.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 960
- Package 2 Height
- 106.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 302.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Fastening parts/-set
Standards & Compliance
- HS Code
- 8302.41
Cross References
- EAN 3606481714763
- SAP 1200476518
- Code 82548425
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Metal Retaining Clip for RXZ Miniature Relay Socket
RXZ400
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 7.3E, ComPacT NSX400/630, 3 poles, basic and earth leakage protections, energy meter, 400A C4037E400
Schneider Electric
TC nail clip 3X5 white 25 pcs
IMT37494
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H225W175D100 EXT.H241W194D105 Opaque cover H20 NSYTBS241910H
Schneider Electric
Mounting Plate 800X800
NSYMM88
Schneider Electric

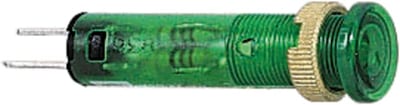

LED lamp 8mm 24V Green (XVLA233)
Schneider Electric

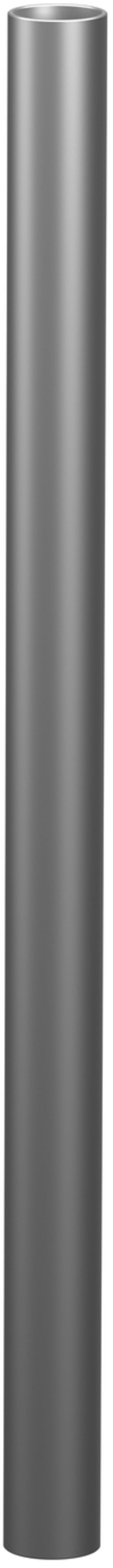

Schneider Electric Aluminium Mounting Tube Diameter 25 mm L=400 mm
XVZ400
Schneider Electric

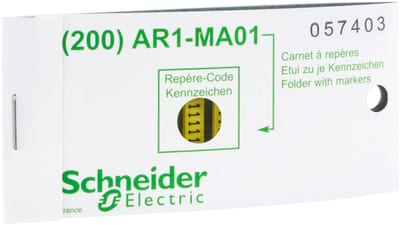

Schneider Electric AR1MA011 YELLOW CLIPIN CHARACTER SET OF 200 CHARACTER 1
