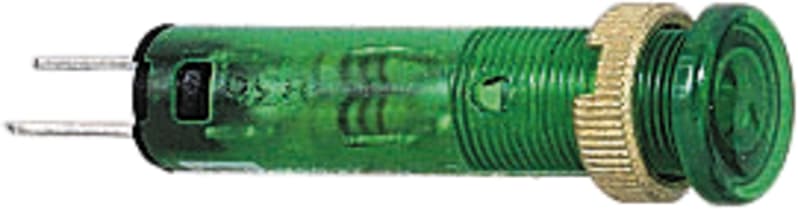

LED lamp 8mm 24V Green (XVLA233)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVLA233 LED lamp 8mm 24V Green.
Technical Specifications
- Manufacturer part number (MPN)
- XVLA233
- EAN / GTIN
- 3389110651362
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- Range of product
- Harmony XVL
- Product or component type
- LED pilot light with integral lens cap
- Component name
- XVL
- Mounting diameter
- 8 mm
- Light source
- Covered LED
- Light block colour
- Green
- Protection type
- Integral ballast resistor; Built-in by diode
- [Us] rated supply voltage
- 24 V
- IP degree of protection
- IP65 (with seal XVLZ911) conforming to IEC 60529; IP65 (with seal XVLZ911) conforming to NF C 20-010; IP40 conforming to IEC 60529; IP40 conforming to NF C 20-010
- Sale per indivisible quantity
- 10
- Supply circuit type
- DC
- Connections - terminals
- Tag for Faston connectors: 2.8 x 0.5 mm; Tag for soldering connectors
- Current consumption
- 18 mA
- [Ui] rated insulation voltage
- 50 V conforming to IEC 60947-1
- Bulb lifespan
- 100000 h
- Nominal voltage limit
- 0.8...1.1 Un
- Terminals description ISO n°1
- (X1-X2)PL
- Height
- 10 mm
- Width
- 10 mm
- Depth
- 36 mm
- Product weight
- 0.003 kg
- Product certifications
- UL; CSA
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Overvoltage category
- Class 3 conforming to IEC 60536; Class 3 conforming to NF C 20-030
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- ES
- Warranty (in months)
- 18
- Hole diameter
- 8 mm
- Voltage type
- AC/DC
- Colour lens
- Green
- Number of indicator lights
- 1
- Rated operating voltage Ue
- 24 V
- Colour front ring
- Black
- Type of electric connection
- Flat plug-in connection
- Degree of protection (IP)
- IP40
- With light source
- Yes
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of lamp socket
- LED
- Type of lens
- Flat
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110651362
- SAP 1000036774
- Code 8735860
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Aluminium Mounting Tube Diameter 25 mm L=400 mm
XVZ400
Schneider Electric
Schneider Electric AR1MA011 YELLOW CLIPIN CHARACTER SET OF 200 CHARACTER 1
Schneider Electric
LED lamp 12mm 24V Orange
XVLA335
Schneider Electric
Schneider Electric Coupling Kit 4-Way IP30 PrismaSeT G
LVS08818
Schneider Electric
Screw Clip TCS-X-C3 Secor 14-18 LG
2191050
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX160H, 70KA/415VAC, 4 poles, 160A frame rating, without trip unit C16H4
Schneider Electric
Locking handle 3mm double-bar S3D
NSYAEDLB3S3D
Schneider Electric

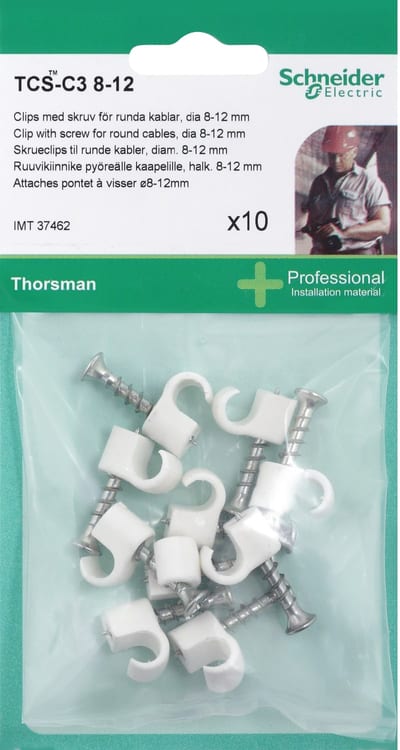

TCS-C3 screw clip 8-12 10 pcs
