Schneider Electric ABS box IP66 IK07 RAL7035 INT.H225W175D100 EXT.H241W194D105 Opaque cover H20 NSYTBS241910H
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS241910H 85013 Abs Box 241X194X105 T.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS241910H
- EAN / GTIN
- 3606480165344
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Dimensions
- 241×194×105
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 241 mm
- Width
- 194 mm
- Depth
- 107 mm
- Internal height
- 225 mm
- Internal width
- 175 mm
- Internal depth
- 100 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- High plain cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 0.72 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Number of Units in Package 3
- 108
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165344
- SAP 1000090246
- Code 8582812
Product Documentation
More from Schneider Electric
Schneider Electric
Mounting Plate 800X800
NSYMM88
Schneider Electric
LED lamp 8mm 24V Green (XVLA233)
Schneider Electric
Schneider Electric Aluminium Mounting Tube Diameter 25 mm L=400 mm
XVZ400
Schneider Electric
Schneider Electric AR1MA011 YELLOW CLIPIN CHARACTER SET OF 200 CHARACTER 1
Schneider Electric

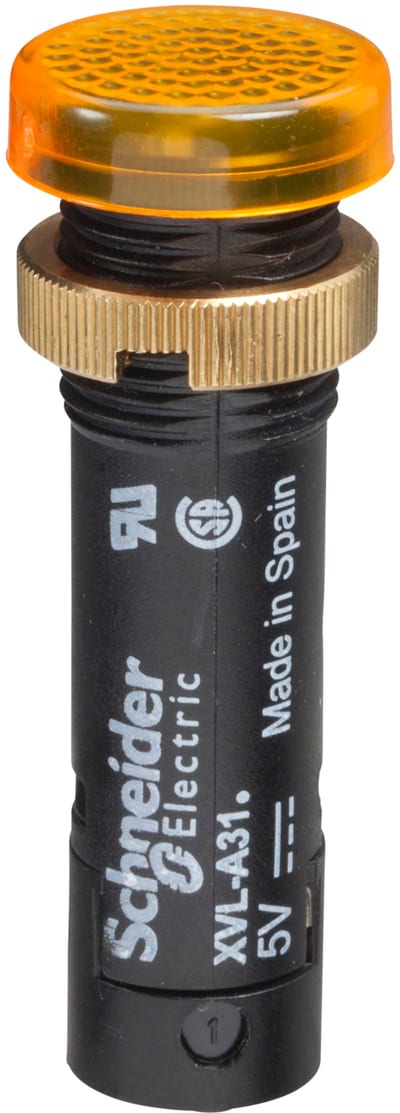

LED lamp 12mm 24V Orange
XVLA335
Schneider Electric

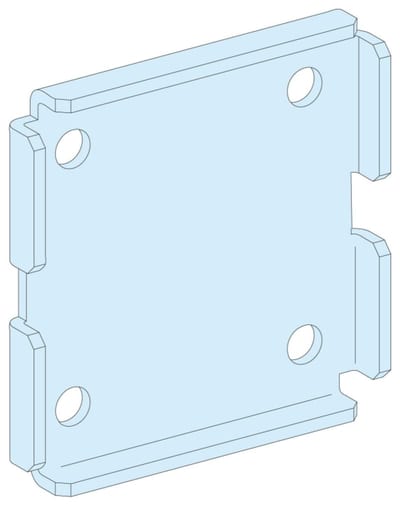

Schneider Electric Coupling Kit 4-Way IP30 PrismaSeT G
LVS08818
Schneider Electric

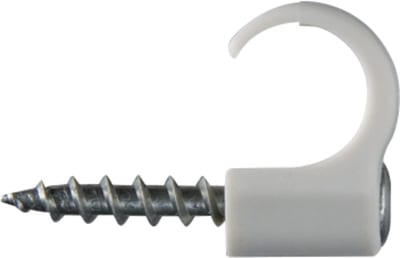

Screw Clip TCS-X-C3 Secor 14-18 LG
2191050
Schneider Electric

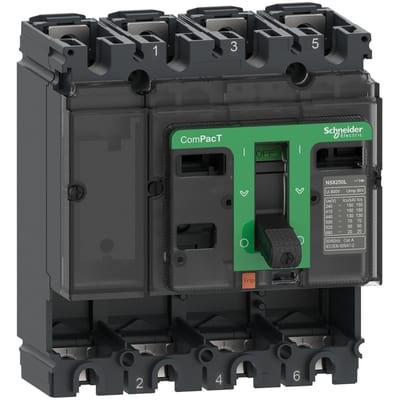

Schneider Electric Circuit breaker basic frame, ComPacT NSX160H, 70KA/415VAC, 4 poles, 160A frame rating, without trip unit C16H4
