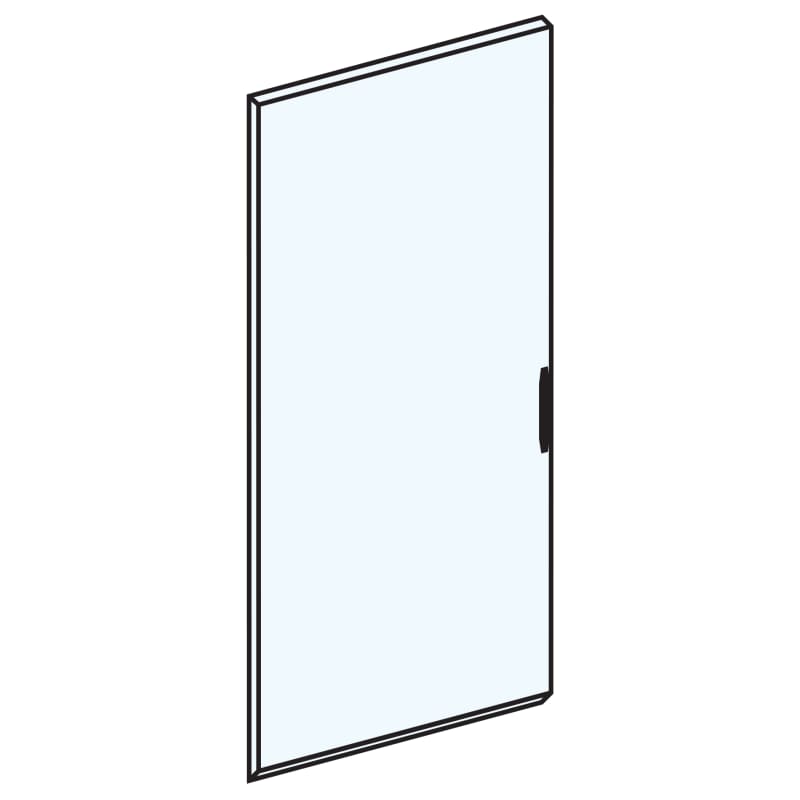

Door for PrismaSeT G CABINET-IP55-33MOD B600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08329 Door for PrismaSeT G Wall/floor-standing cabinet 33-modules -width 600mm-IP55-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08329
- EAN / GTIN
- 3606481878502
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 33 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 2 hinge
- type of door
- Plain
- IP degree of protection
- IP55
- installation description
- Wall-mounted enclosure - width 600 mm; Extension enclosure - width 600 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 180 °
- Number of vertical modules [50 mm]
- 33
- Enclosure material
- Treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1720.5 mm
- Width
- 600 mm
- Depth
- 26 mm
- Product weight
- 26.76 kg
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878502
- SAP 1200547522
- Code 82880334
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 14 A, magnetic, toggle control, screw clamp terminals GV2LE16
Schneider Electric
Schneider Electric TeSys K - Suppressor module - bidirectional peak limiting diode - 12...24 V LA4KC1B
Schneider Electric

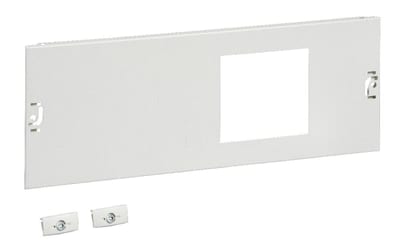

Front plate NSX630 3P Horizontal PrismaSe
LVS03643
Schneider Electric

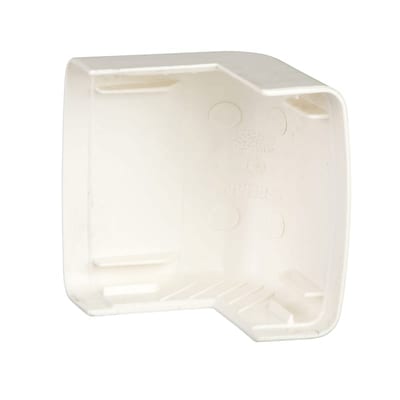

OL External corner 2560 HF PC/ABS Pure white
ISM14602P
Schneider Electric

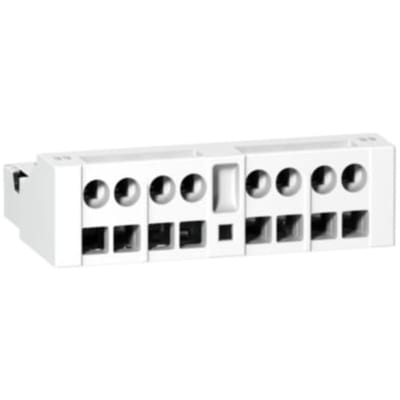

Schneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC GVAE113
Schneider Electric

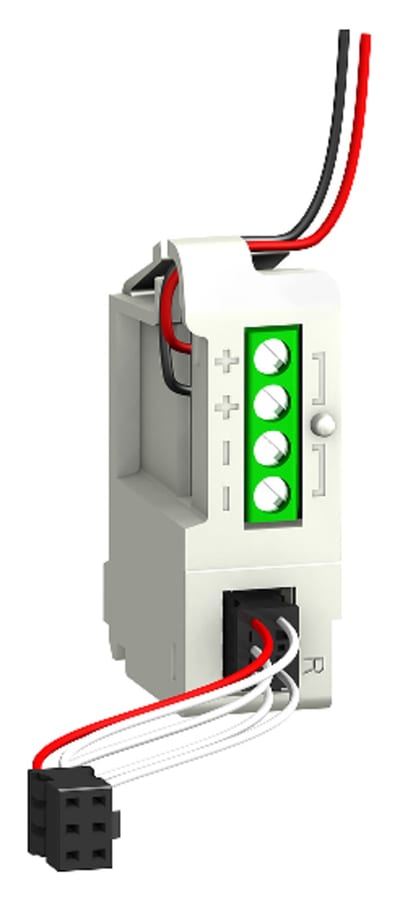

Schneider Electric LV434210 power supply connector, ComPact NSX, 24 VDC, for MicroLogic 5/6
Schneider Electric

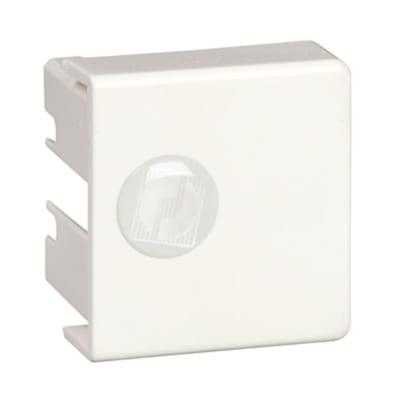

END Piece Tir+ ES6040 White
