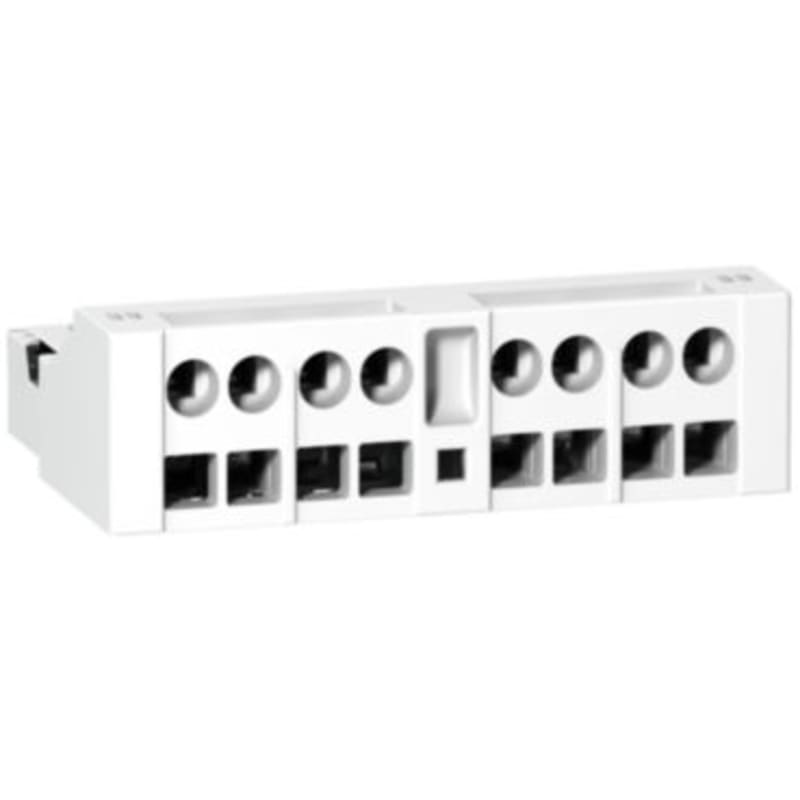

Schneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC GVAE113

Schneider Electric GVAE113 Auxiliary block 1NO+1NC Spring GV2.

Manufacturer part number (MPN)

GVAE113 EAN / GTIN: 3389110346633 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 1 NO + 1 NC Range: TeSys; TeSys Deca Device short name: GVAE Product or component type: Auxiliary contact block Product compatibility: GV2L; GV2ME; GV3L; GV2RT; GV2P; GV3P; GV2LE; LS1D323 Mounting location: Front side Pole contact composition: 1 NO + 1 NC Quantity per set: Set of 10 [Ui] rated insulation voltage: 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14; 250 V conforming to IEC 60947-1 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GG fuse 10 A; GB2CB06 circuit breaker 10 A Rated operational power in VA: 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles; 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 48 VA at 24 V AC-15 - electrical durability: 100000 cycles; 60 VA at 48 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 15 W at 48 V DC-13 - electrical durability: 100000 cycles; 24 W at 24 V DC-13 - electrical durability: 100000 cycles; 9 W at 60 V DC-13 - electrical durability: 100000 cycles Height: 13 mm Width: 44.5 mm Depth: 31.5 mm Product weight: 0.05 kg Colour: Dark grey Environmental characteristic: Normal environment Product certifications: UKCA Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 260 Country of origin: CZ Warranty (in months): 18

HS Code

8538.90

• EAN 3389110346633
• SAP 1000020047
• Code 8168013
