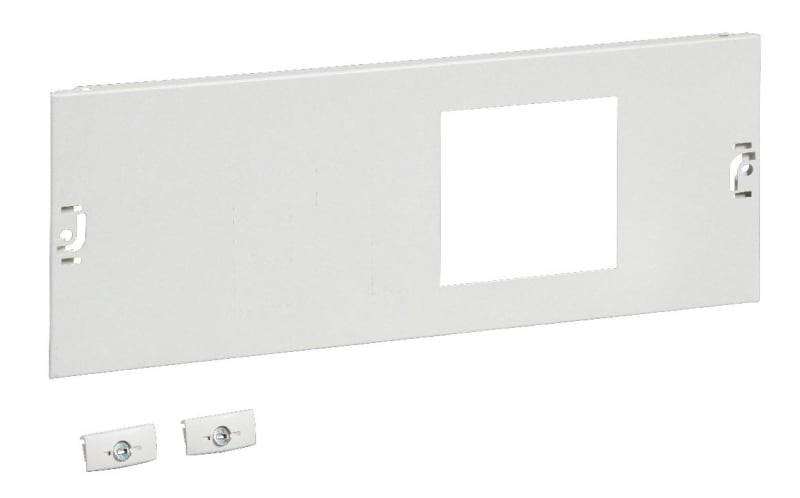

Front plate NSX630 3P Horizontal PrismaSe
Part numberLVS03643EAN / GTIN3606481866110HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03643 Front plate for NSX400/630 3P-Horizontal-3P-fast/plug-in/all operation/motor-PrismaSeT P-650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03643
- EAN / GTIN
- 3606481866110
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: motor mechanism - horizontal installation
- Poles description
- 1 x 3P: mounting plate support: CVS400 horizontal installation; 1 x 3P: mounting plate support: CVS630 horizontal installation; 1 x 3P: mounting plate support: NSX400 horizontal installation; 1 x 3P: mounting plate support: NSX630 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Height
- 200 mm
- Product weight
- 0.74 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in motor mechanism horizontal 3P 1 direct 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 14
- Number of Units in Package 3
- 168
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 500 mm
- Suitable for enclosure building width
- 650 mm
- Material
- Steel
- Number of height units
- 4
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866110
- SAP 1200546715
- Code 82880349
