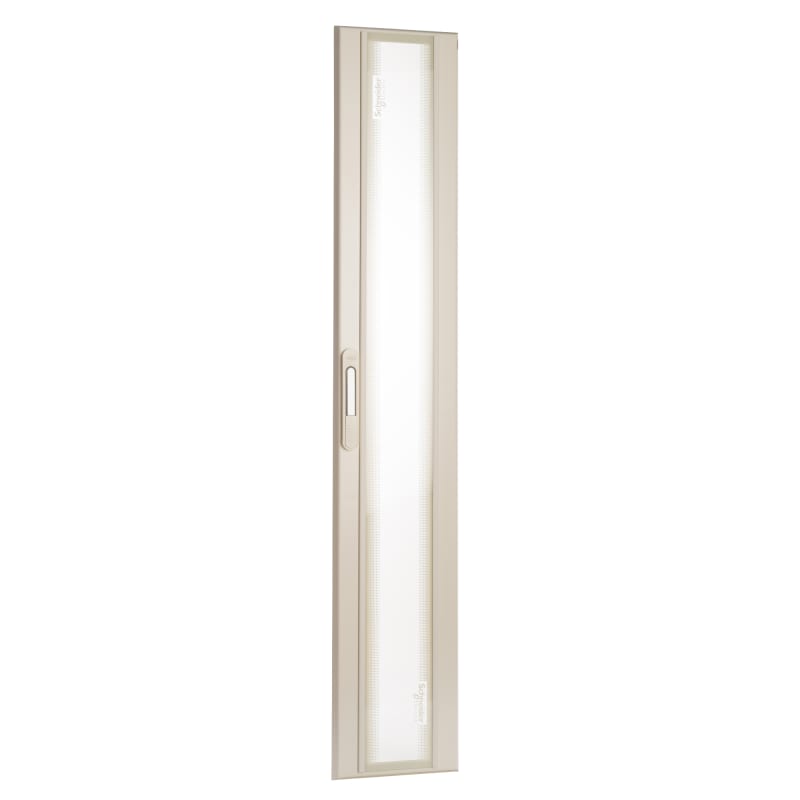

Transp. door Prisma G cablef. 36MOD-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08295 Transparent door cable compartment PrismaSeTG-floor-standing cabinet-36-modules-width 300mm-IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08295
- EAN / GTIN
- 3606481878434
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 36 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G duct
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 3 hinge
- type of door
- Transparent
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Floor-standing duct - width 300 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 36
- Enclosure material
- Handle: polyamide; Glass; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1816.6 mm
- Width
- 300 mm
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK08 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 33 mm
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP40
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606481878434
- SAP 1200547500
- Code 82880204
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LV CT 800 A - 0.333 V output - split core CT - 62 mm x 201 mm LVCT00804S
Schneider Electric

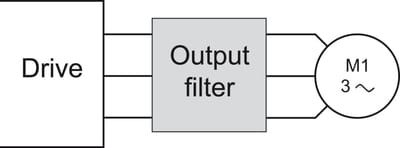

Output Filter DV/DT IP20 95A
VW3A5305
Schneider Electric

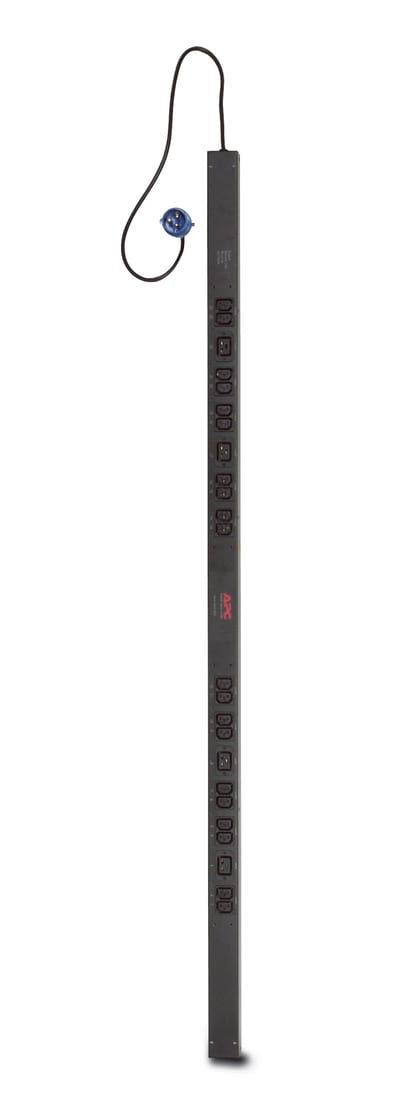

Schneider Electric Spare parts / accessories AP7551
Schneider Electric

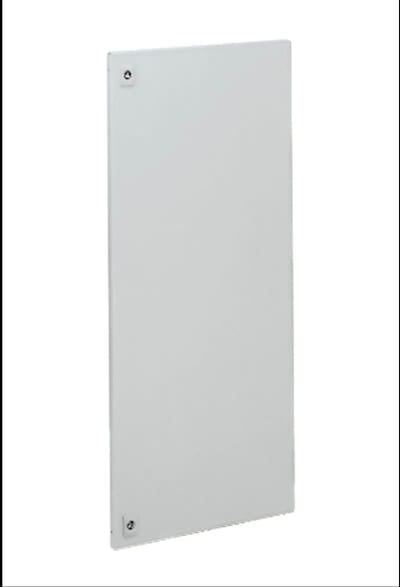

Internal door 7035 750X500 PLA
NSYPAPLA75G
Schneider Electric

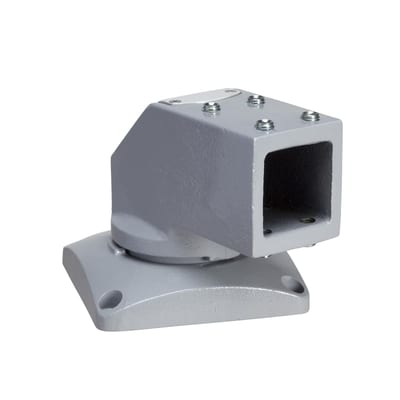

83263 HORR. Roter Bracket 50X50
NSYCMUMC50
Schneider Electric

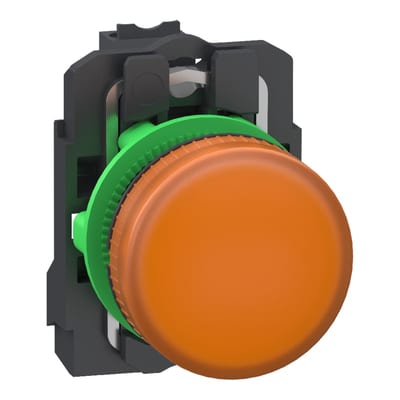

Schneider Electric Pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 24V AC DC, compact push in terminals XB5AVB55
Schneider Electric

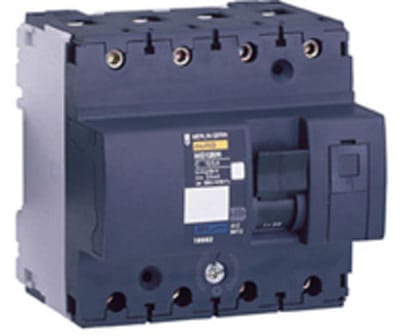

NG125L/B 63-4 Modular Power Switch
18775
Schneider Electric

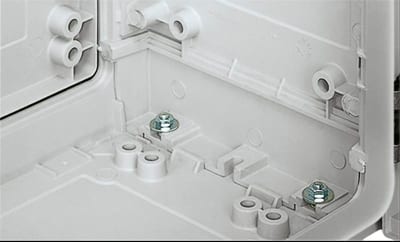

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X1250X320 IP44 NSYPLAZT10123G
