Schneider Electric LV CT 800 A - 0.333 V output - split core CT - 62 mm x 201 mm LVCT00804S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVCT00804S LVCT 800A – 0,333 V output – with split core – 62 mm x 201 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVCT00804S
- EAN / GTIN
- 3606480299674
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Rated current
- 800 A
- Range
- PowerLogic
- Device short name
- LVCT
- Product or component type
- Current transformer
- output voltage
- 0.333 V
- Electrical connection
- Cable: 1.8 m (18 AWG) 600 V
- Product destination
- BCPM; BCPMSC; Enercept; IEM3000; EM3500; EM4200; EM4900
- Accessory / separate part category
- Measurement accessory
- Current transformer type
- Split core balance
- [In] rated current
- 800 A
- Network frequency
- 50/60 Hz
- Range compatibility
- PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter; PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter; PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter; PowerLogic PowerLogic EM3500 EM3502 energy meter; PowerLogic PowerLogic EM3500 EM3550 energy meter; PowerLogic PowerLogic EM3500 EM3555 energy meter; PowerLogic PowerLogic EM3500 EM3560 energy meter; PowerLogic PowerLogic EM3500 EM3561 energy meter; PowerLogic PowerLogic EM4200 EM4235 energy meter; PowerLogic PowerLogic EM4200 EM4236 energy meter; PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter; Acti 9 Acti9 iEM3000 iEM3455 energy meter; Acti 9 Acti9 iEM3000 iEM3465 energy meter
- Measurement accuracy
- 1 % 10...100 %
- Relative humidity
- 95 %
- Ambient air temperature for operation
- -15…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Standards
- UL 61010
- Width
- Internal: 62 mm; External: 151 mm
- Depth
- 30 mm
- Height
- Internal: 139 mm; External: 201 mm
- Product weight
- 0.87 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Warranty (in months)
- 18
- Model
- Cable rebuilding current converter
- Rated primary current
- 800 A
- Accuracy class
- 1
- Calibrated
- No
- With contact protection
- No
- Height opening
- 139 mm
- Width opening
- 62 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Cable
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480299674
- SAP 1200108137
- Code 81976142
Product Documentation
More from Schneider Electric
Schneider Electric
Output Filter DV/DT IP20 95A
VW3A5305
Schneider Electric
Schneider Electric Spare parts / accessories AP7551
Schneider Electric
Internal door 7035 750X500 PLA
NSYPAPLA75G
Schneider Electric
83263 HORR. Roter Bracket 50X50
NSYCMUMC50
Schneider Electric
Schneider Electric Pilot light, Harmony XB5, grey plastic, orange, 22mm, universal LED, plain lens, 24V AC DC, compact push in terminals XB5AVB55
Schneider Electric
NG125L/B 63-4 Modular Power Switch
18775
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000X1250X320 IP44 NSYPLAZT10123G
Schneider Electric

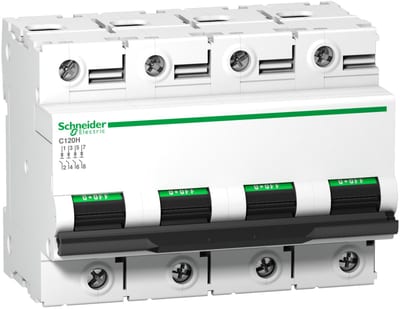

Schneider Electric Miniature circuit-breaker, ACTI9 C120H, 4P, 125 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) A9N18481
