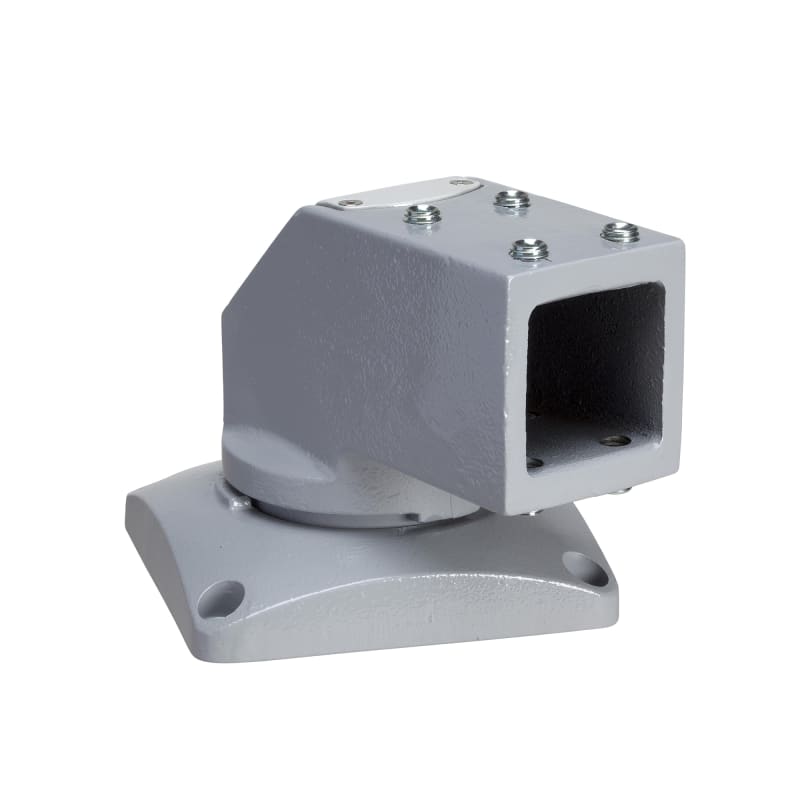

83263 HORR. Roter Bracket 50X50
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCMUMC50 83263 HORR. ROTER BRACKET 50X50.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCMUMC50
- EAN / GTIN
- 3606480213007
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Fixing on support
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Between tube and support
- Mounting support
- Option of passing cables through the inside; For 50 mm square tube
- Range compatibility
- PanelSeT S3CM
- Device composition
- fixing elements; 1 fixing and rotating bracket
- Quantity per set
- Set of 1
- Material
- Moulded steel
- Colour
- Grey (RAL 7040)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element - screw type M12 - horizontal tube location ; By 4 screws - screw type M9 - on support location
- Operating angle
- 295 °
- Permanent permissible load
- 5.4 kg
- Height
- 134 mm
- Width
- 140 mm
- Depth
- 164 mm
- Product weight
- 5.56 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 48
- Country of origin
- DE
- Warranty (in months)
- 18
- Model
- Component for supporting bracket
- Max. load capacity
- 5.4 kg
- RAL-number
- 7040
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480213007
- SAP 1200500804
- Code 82623896
Product Documentation
