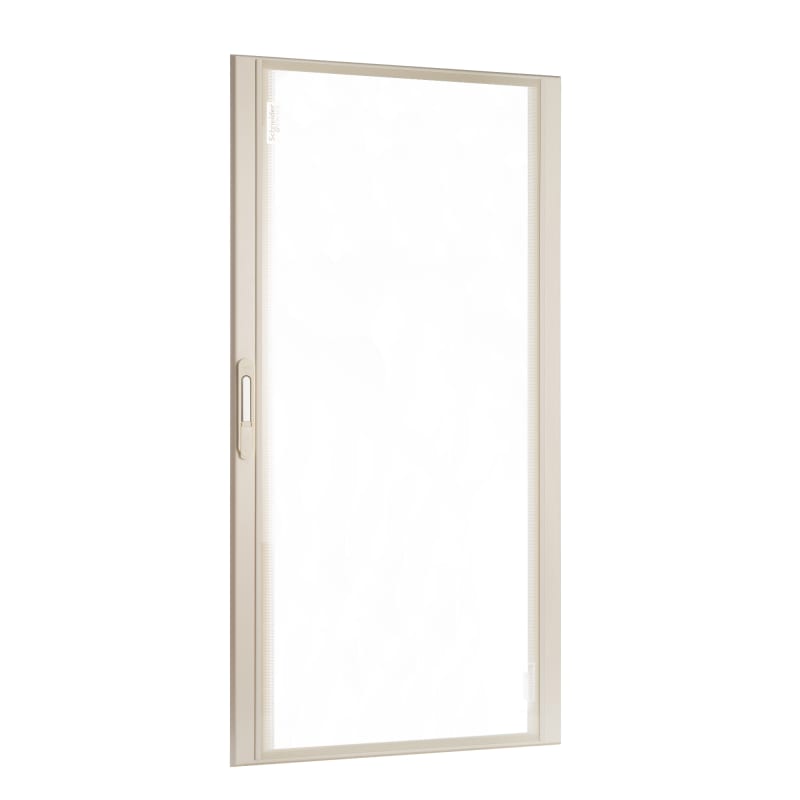

Transparent door PrismaG B850 33MOD-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08264 Transparent door for PrismaSeT G floor-standing cabinet 33-modules width 850mm-IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08264
- EAN / GTIN
- 3606481878342
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 33 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 3 hinge
- type of door
- Transparent
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Floor-standing enclosure - width 850 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 33
- Enclosure material
- Glass; Treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1666.6 mm
- Width
- 850 mm
- Depth
- 40 mm
- Product weight
- 15.4 kg
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK08 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Material
- Glass
- Degree of protection (IP)
- IP40
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878342
- SAP 1200547487
- Code 82880565
