Transparent door PrismaSeT G wall 15MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

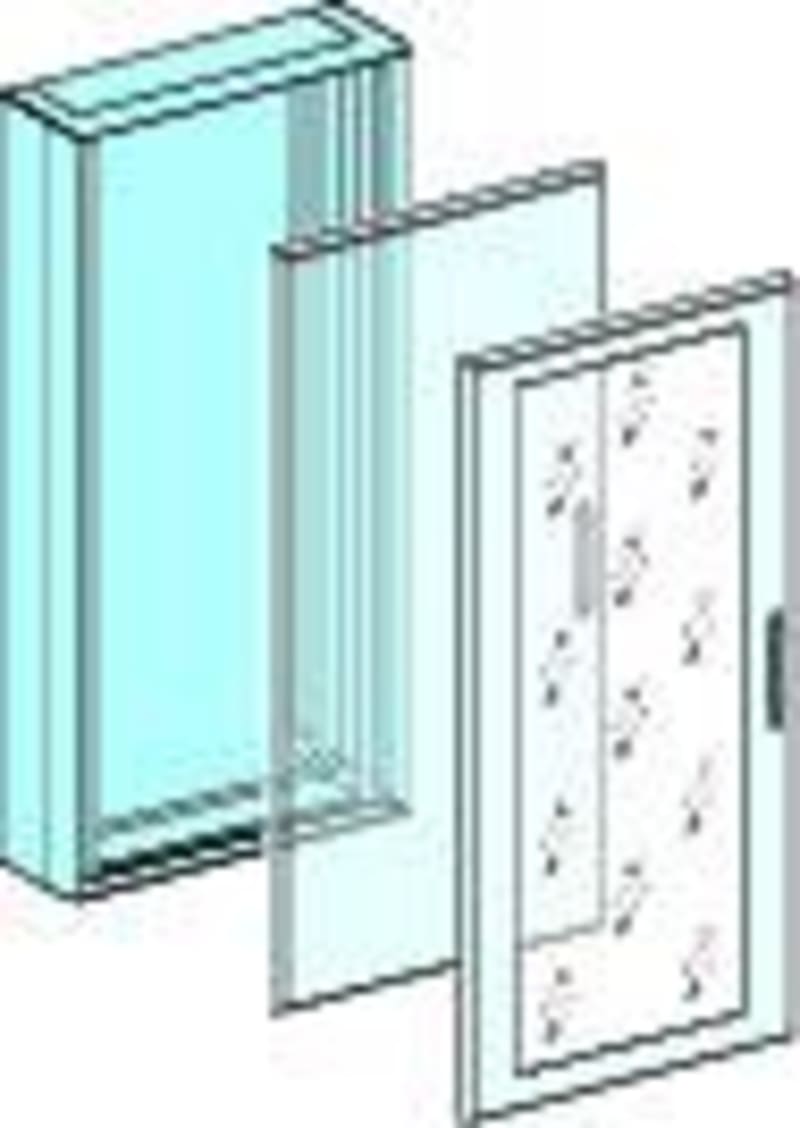

Schneider Electric LVS08135 Transparent door for PrismaSeT G Wall-mount cabinet 15-modules width 600mm-IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08135
- EAN / GTIN
- 3606481879103
- Sales unit
- pcs
- Modular width
- 15 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 2 hinge
- type of door
- Transparent
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Wall-mounted enclosure - width 600 mm; Extension enclosure - width 600 mm
- Door opening side
- Reversible
- Number of locks
- 2
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 15
- Enclosure material
- Handle: polyamide; Glass; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 766.6 mm
- Width
- 600 mm
- Depth
- 36 mm
- Product weight
- 5.52 kg
- Material
- Glass
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- IK degree of protection
- IK08 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Warranty (in months)
- 18
- Model
- Compartment door
- EMC-version
- No
- Degree of protection (IP)
- IP40
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606481879103
- SAP 1200546909
- Code 82879262
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric flush mounted selector switch head key 8D1 2 pos stay put ZB5FG2D
Schneider Electric
Schneider Electric SE Back-UPS, 1200VA, Tower, 230V, 4 x CEE 7/7 Schuko outlets, AVR BXS1200MI-GR
Schneider Electric
VIGI NG125 3-63 1000 MA
19033
Schneider Electric
Schneider Electric PanelSet S3DEX (ATEX certified) H400XW300XD200 .IP66 IK10 RAL7035. NSYS3DEX4320
Schneider Electric
Schneider Electric APC Smart-UPS RT 2200VA 230V - Marine SURTD2200XLIM
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800H, 70KA at 415VAC, 800A, 3P, withdrawable, manually operated, without control unit C080H3WM
Schneider Electric

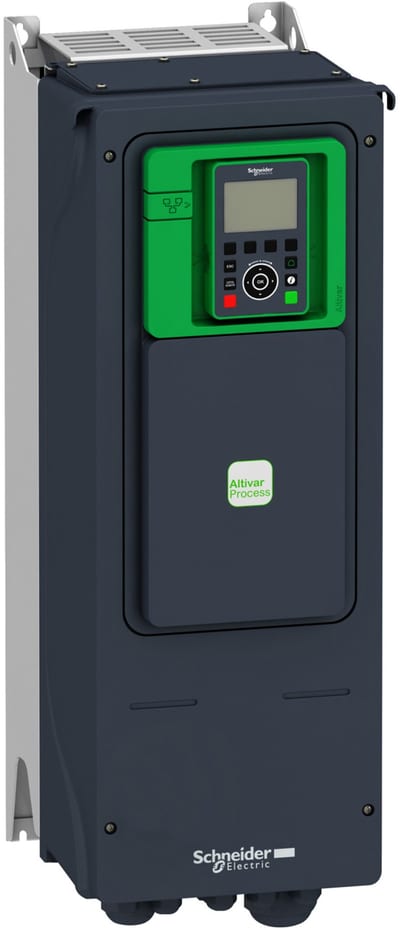

Schneider Electric variable speed drive ATV650 - 0.75KW/1HP - 380...480V - IP55 ATV650U07N4
Schneider Electric

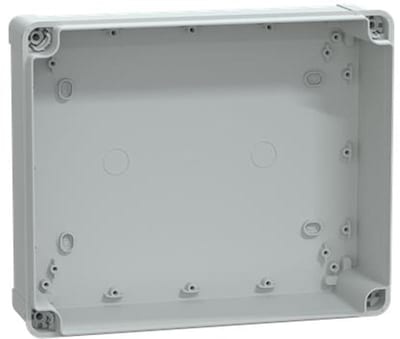

Schneider Electric PC box IP66 IK08 RAL7035 INT.H275W225D80 EXT.H291W241D88 Transparent cover H20 NSYTBP29248T
