Schneider Electric flush mounted selector switch head key 8D1 2 pos stay put ZB5FG2D

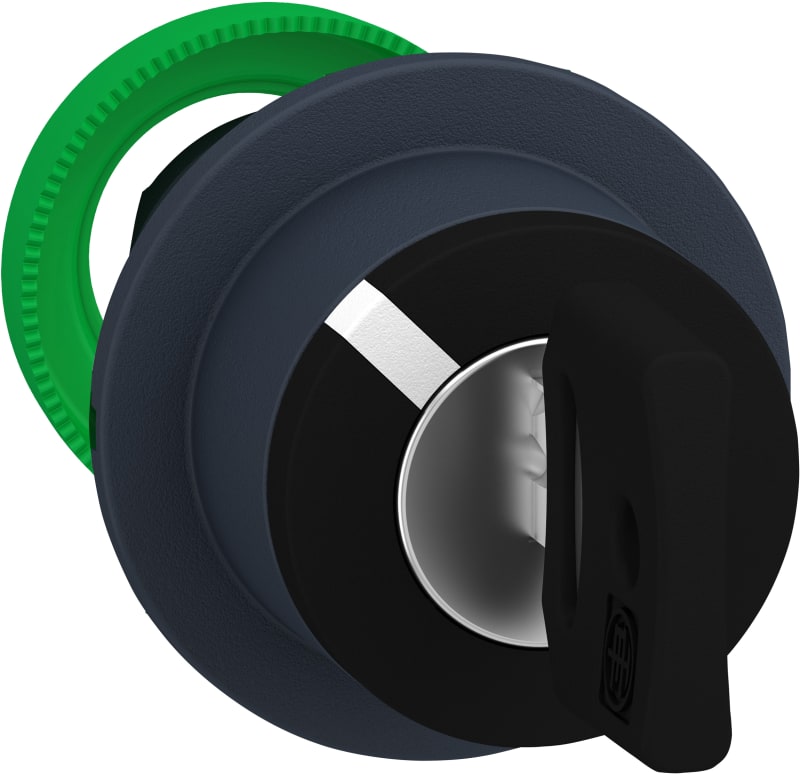

Schneider Electric ZB5FG2D Key grip flush in plastic with 2 fixed positions And key (Dom 8D1) out in V.

Manufacturer part number (MPN)

ZB5FG2D

EAN / GTIN

3606481339379

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Head for key selector switch

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

30.5 mm

Head type

Built-in-flush

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black key switch

Operator position information

2 positions 90°

Type of keylock

Key 3131A; Dom 8D1

Key withdrawal position

Left

CAD overall width

37 mm

CAD overall height

37 mm

CAD overall depth

72 mm

Product weight

0.069 kg

Mechanical durability

1000000 cycles

Electrical composition code

C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C3 for <6 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-4; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.000 cm

Package 1 Width

5.500 cm

Package 1 Length

4.500 cm

Package 1 Weight

72.000 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

31 mm

Number of switch positions

2

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Width opening

37 mm

Height opening

37 mm

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Colour control element

Black

Switching function latching

Yes

Degree of protection (NEMA)

4X

HS Code

8538.90

• EAN 3606481339379
• SAP 1200094674
• Code 81957906
