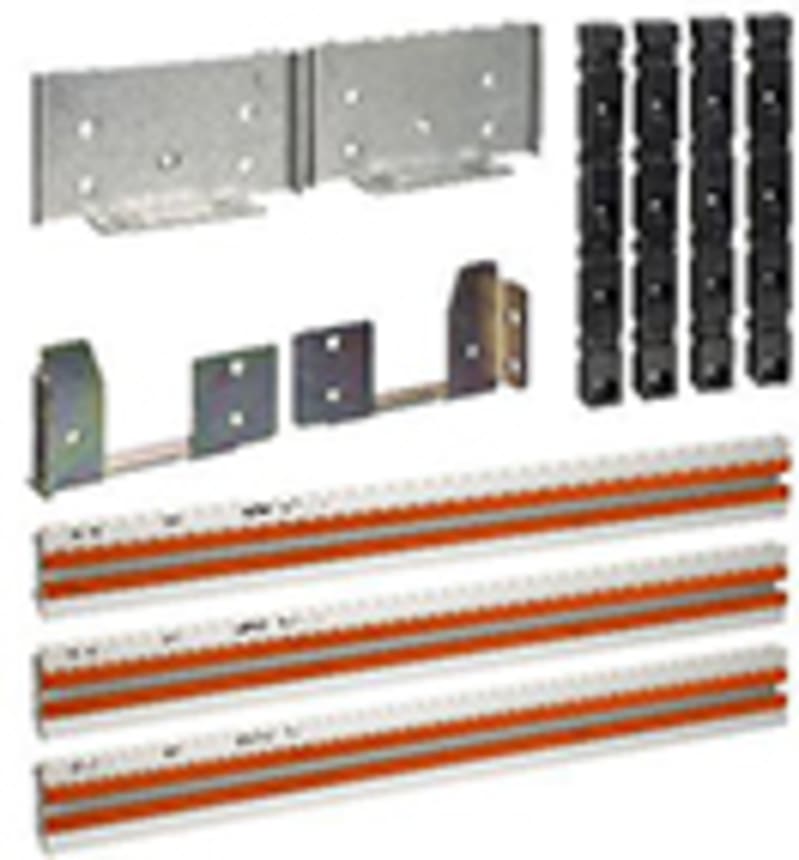

Connection Kit vert./hor. LGY 1600A 3P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04683 Connection Set for vertical/horizontal LGY/LGYE rails 1600A 3P PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04683
- EAN / GTIN
- 3606481884633
- Sales unit
- pcs
- Rated current
- 1600 A
- Number of poles
- 3P
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy LGY
- Accessory / separate part category
- Coupling accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy LGY busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- Masterpact: fixed NW08...16 vertical installation - bottom connection; Masterpact: withdrawable NW08...16 vertical installation - bottom connection
- [Ie] rated operational current
- 1600 A
- Quantity per set
- Set of 1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 3606481884633
- SAP 1200547025
- Code 82879847
