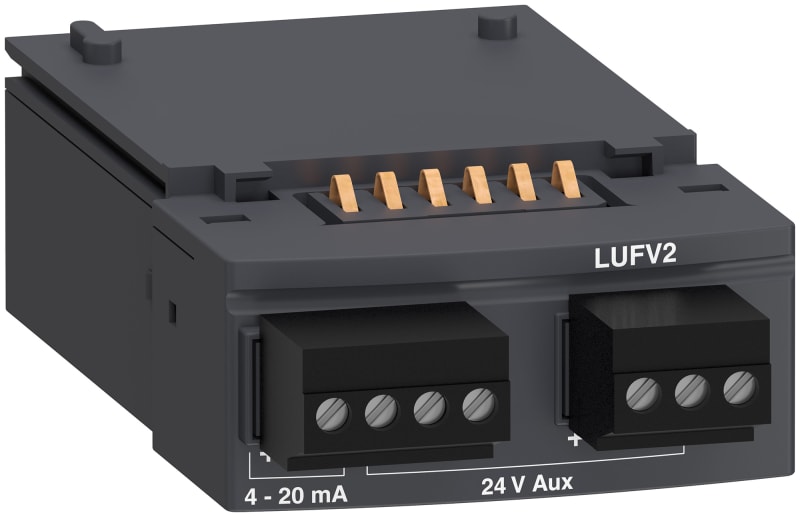

Schneider Electric TeSys U - LUF function block indication of motor load 4...20 mA LUFV2

Schneider Electric LUFV2 Motorlast module MOD. U 4-20MA.

Manufacturer part number (MPN)

LUFV2

EAN / GTIN

3389110365498

Sales unit

pcs

Package quantity

36 pcs

Output signal

4–20 mA

Range

TeSys

Device short name

LUF

Product or component type

Function module

Product compatibility

LUCC; LUCM; LUCB; LUCD

mounting mode

Plug-in

Mounting location

Front side

main function available

Indication of motor load

[Us] rated supply voltage

24 V DC

Analogue output current

4…20 mA

Type of output signal

Value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD; Value of I average/Ir ratio within the range of 0 to 3 for LUCC

Load impedance ohmic

100 Ohm typical; <= 500 Ohm

Measurement accuracy

+/- 10 % with multifunction control unit - resolution: 1 % of Ir; +/- 6 % with advanced control unit

Connection pitch

3.81 mm

Connections - terminals

Screw clamp terminals 1 cable(s) 0.14…1 mm² flexible without cable end; Screw clamp terminals 1 cable(s) 0.14…1 mm² rigid without cable end; Screw clamp terminals 1 cable(s) 0.25…0.5 mm² flexible with cable end; Screw clamp terminals 1 cable(s) 0.25…1 mm² flexible with cable end; Screw clamp terminals 2 cable(s) 0.14…0.5 mm² rigid without cable end; Screw clamp terminals 2 cable(s) 0.14…0.75 mm² flexible without cable end; Screw clamp terminals 2 cable(s) 0.25…0.34 mm² flexible with cable end; Screw clamp terminals 2 cable(s) 0.5 mm² flexible with cable end

Associated cable type

AWG 26...AWG 16

Tightening torque

0.2…0.25 N.m - with screwdriver 2.5 mm flat

Product weight

0.05 kg

Number of Units in Package 1

1

Number of Units in Package 2

36

Country of origin

FR

Warranty (in months)

18

Type of accessory/spare part

Sensor

Accessory

Yes

Spare part

No

HS Code

8531.80
