Endetilkobl 40A Venst BusWhite
Pricing
Request a quote
We reply within 24 hours
Product Description

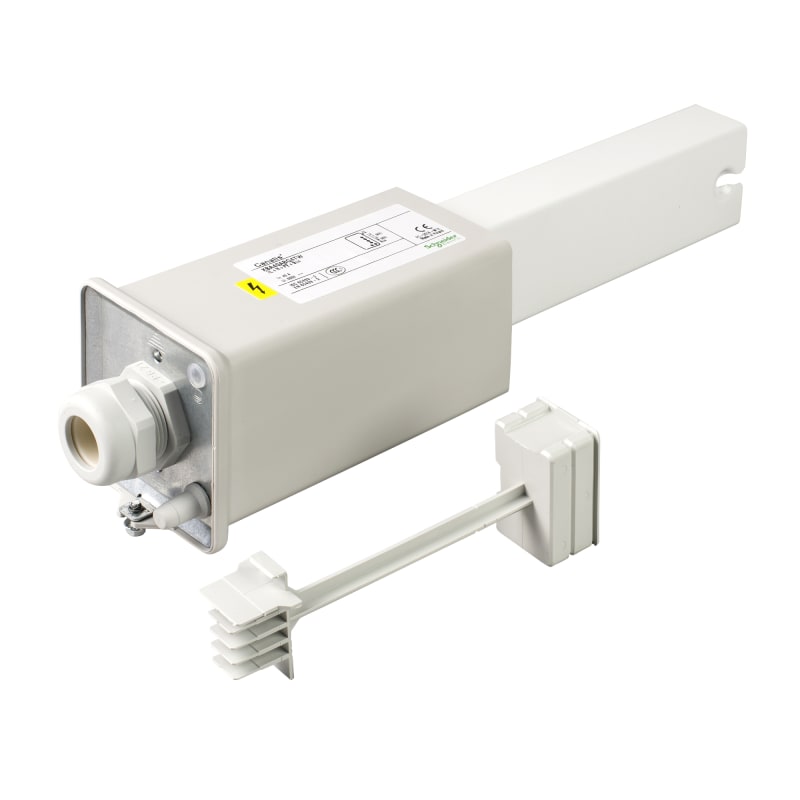

Schneider Electric KBA40ABG4TW Endetilkobl 40A Venst BusHvit.
Technical Specifications
- Manufacturer part number (MPN)
- KBA40ABG4TW
- EAN / GTIN
- 3606480000256
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 40 A
- Range of product
- Canalis
- Device short name
- KBA
- Product compatibility
- Canalis KBA busbar trunking 25…40 A
- Offer type
- Control system
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 40 A; 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Communicating
- Communication port protocol
- DALI; KNX
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 21 - screw clamp connector for 10 mm²
- Width
- 300 mm
- Depth
- 75.5 mm
- Height
- 78.5 mm
- Product weight
- 400 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Number of Units in Package 3
- 60
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9003
- Number of poles
- 5
- Length
- 300 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated current AC 50 Hz
- 40 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480000256
- SAP 1000572000
- Code 8689463
Product Documentation
More from Schneider Electric
Schneider Electric
Selector Switch Head L.2 FAST POS. (ZB4BJ2)
Schneider Electric
Schneider Electric ZB4BP2 Harmony XB4 Push-Button Head — Ø22 mm, Black, projecting, spring return, non-illuminated, metal bezel, booted
Schneider Electric
KONTROLLER,Ø22 MM,Metal (XD2GA8241)
Schneider Electric
Schneider Electric TeSys U - LUF function block indication of motor load 4...20 mA LUFV2
Schneider Electric
Gasket SET (KZ81)
Schneider Electric
Marker SLEEVE, 3 (AR1MA013)
Schneider Electric
Schneider Electric STD - DIN - remote control dimmer - 1000 W CCTDD20003
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1000X400MM, 2 doors, IP55 NSYSFN1810402D
Technical guides
Catalogue entry last verified: 2026-08-24. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KBA40ABG4TW?
- KBA40ABG4TW can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is KBA40ABG4TW.
- What is the HS code for KBA40ABG4TW?
- The customs tariff (HS) code for KBA40ABG4TW is 8536.90.
- Who manufactures KBA40ABG4TW?
- KBA40ABG4TW is a Schneider Electric product in the SC000122 range.
- Is a datasheet available for KBA40ABG4TW?
- Yes — the KBA40ABG4TW datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KBA40ABG4TW?
- The minimum order quantity is 1.
- Is KBA40ABG4TW available?
- Yes — KBA40ABG4TW is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
