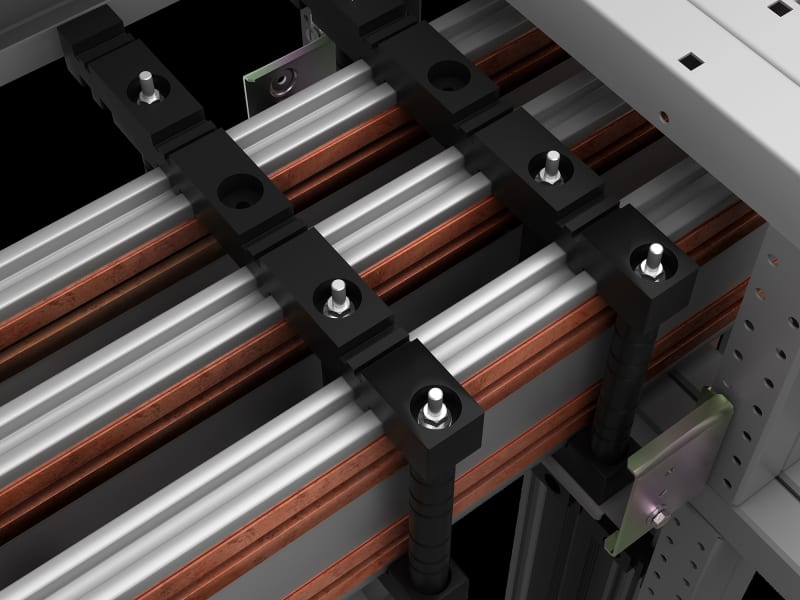

Schneider Electric LVS04671 PrismaSeT Busbar Support Mounting Set >80 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04671 is a mounting-hardware set of two supports for Linergy BS and Linergy LGYE busbars in PrismaSeT P, Prisma POLAR WHITE and Prisma iPM enclosures, sized for busbars above 80 mm and Icc up to 2000/2500 A. The set fixes the busbar assembly inside the cubicle in accordance with IEC 61439-1/2 and carries ASTA certification. It is a spare-part-classed accessory for low-voltage switchboard build-outs.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04671
- EAN / GTIN
- 3606481867179
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Mounting hardware
- Product name
- Linergy BS
- Range compatibility
- Linergy Linergy LGYE busbar; Linergy Linergy BS busbar; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT Prisma iPM L enclosure; PrismaSeT Prisma iPM M enclosure
- Product compatibility
- Busbar support
- Cubicle-device connection
- busbar
- installation description
- Cubicle
- Product weight
- 0.08 kg
- Quantity per set
- Set of 2
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 4.000 cm
- Package 1 Length
- 19.000 cm
- Package 1 Weight
- 126.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 50
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.750 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 400
- Package 3 Height
- 28.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 64.400 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 7318.15
Cross References
- EAN 3606481867179
- SAP 1200547022
- Code 82879912
Product Documentation
