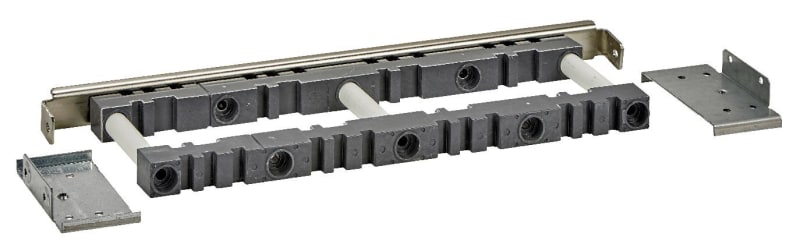

Schneider Electric LVS04665 Busbar fixed support, Linergy BS, 115mm between centers, for 5-10mm thick horizontal busbar
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS04665 Busbar fixed support, Linergy BS, 115mm between centers, for 5-10mm thick horizontal busbar is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Range: Linergy; Range of product: Linergy BS; Product or component type: Busbar support; Product specific application: To support 10 mm thick horizontal flat busbar.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04665
- EAN / GTIN
- 3606481932693
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Range of product
- Linergy BS
- Product or component type
- Busbar support
- Range compatibility
- PrismaSeT PrismaSeT P cubicle; Linergy Linergy BS busbar; Linergy Linergy LGYE busbar
- Product specific application
- To support 10 mm thick horizontal flat busbar
- Busbar description
- Flat plain
- Cubicle-device connection
- Linergy LGYE horizontal busbar - fixed; Linergy BS horizontal busbar - fixed
- Enclosure/cubicle description
- Cubicle
- Cubicle depth
- 600 mm
- Product destination
- For framework
- Busbar position
- Top
- Bar width
- 60 mm; 80 mm; 50 mm
- Installation direction
- Horizontal
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 55.000 cm
- Package 1 Weight
- 2.396 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 4
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.286 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 115 mm
- Max. rated current
- 4000 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481932693
- SAP 1200547018
- Code 82879228
Product Documentation
