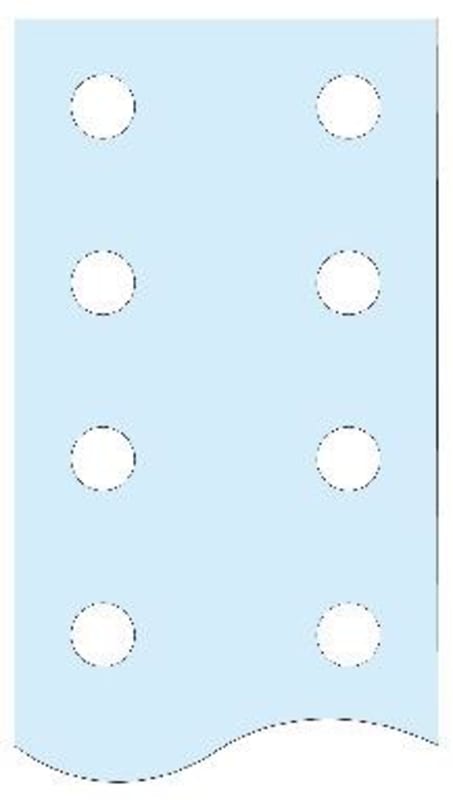

Perforated Earth Busbar LinergyTB 25X5MM L1675
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04512 — PE V.BAR W.HOLES 25X5 L1675 LINERGY TB.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04512
- EAN / GTIN
- 3606481870407
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- PE conductor flat bar
- Product name
- Linergy TB
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Quantity per set
- Set of 1
- Installation direction
- Horizontal; Vertical
- installation description
- Cubicle
- [Ie] rated operational current
- 400 A
- [Icw] rated short-time withstand current
- 40 kA (1 s) for 3 supports (vertical position); 40 kA (1 s) (horizontal position)
- Busbar cross section
- 25 x 5 mm
- Length
- 1675 mm
- Width
- 25 mm
- Depth
- 5 mm
- Product weight
- 2.06 kg
- Colour
- Natural
- Type of busbar connection
- Ø 10 mm drilled hole
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.500 cm
- Package 1 Width
- 11.500 cm
- Package 1 Length
- 178.000 cm
- Package 1 Weight
- 1.926 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 100
- Package 2 Height
- 32.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 220.180 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 5 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 400 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870407
- SAP 1200546961
- Code 82879678
