Prefab. Connection Horizontal NSX250/LGY 4P P
Pricing
Request a quote
We reply within 24 hours
Product Description

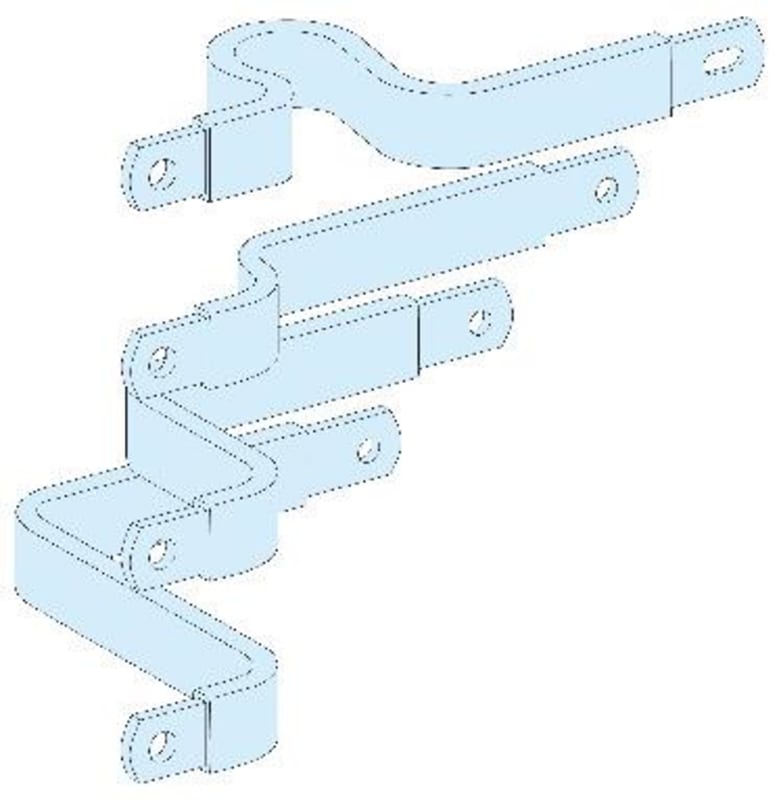

Schneider Electric LVS04424 — Connection for horizontal fixed NSX250 with toggle, 4P 250A, on Linergy LGY.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04424
- EAN / GTIN
- 3606481867506
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed NSX100...160 with earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 250 A
- Busbar cross section
- 20 x 3 mm
- Product weight
- 1.28 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle horizontal 4P 1 direct 4
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 27.500 cm
- Package 1 Length
- 30.000 cm
- Package 1 Weight
- 1.231 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 60
- Package 2 Height
- 36.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 87.860 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 250 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867506
- SAP 1200547109
- Code 82879214
Product Documentation
More from Schneider Electric
Schneider Electric
Metal Clamp TKK 10-14 screw 2.7X25MM
IMT23635
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 40A, 24VDC standard coil, screw clamp terminal LC1DT40BD
Schneider Electric
Schneider Electric TeSys GV1L3 Current Limiter Module 32 A 100 kA
Schneider Electric
Schneider Electric NSYTRAC22 End Plate for Screw Terminals
Schneider Electric
Schneider Electric Auxiliary contact block, TeSys D, 1NO + 1NC, side mounting, screw clamp terminals LAD8N11
Schneider Electric
Schneider Electric NSYS3X8625 PanelSet S3X stainless 304L, Scotch Brite® finish, H800XW600XD250 mm.
Schneider Electric
Schneider Electric XALD324 Control station, plastic, dark grey lid, 3 flush push buttons Ø22, marked UP ARROW O DOWN ARROW
Schneider Electric

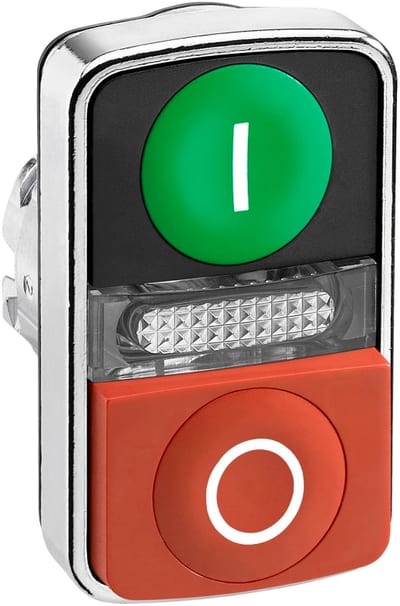

DOUBLE PUSH BUTTON for LIGHT S+r KN IN-0 G+ (ZB4BW7L3741)
