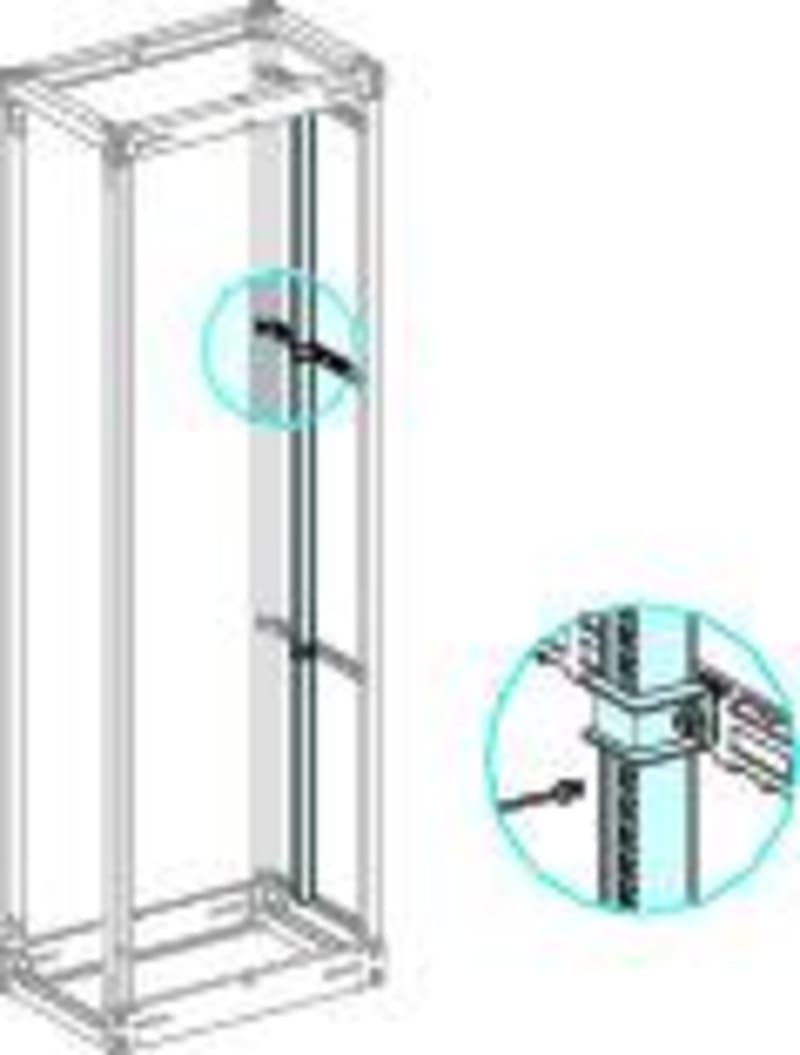

Channel-LINERGY-4P-32A-L1755MM-PRISMA G (LVS04203)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04203 Channel-Linergy-4P-32A-L1755mm-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04203
- EAN / GTIN
- 3606481932839
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Auxiliary bus duct
- Product name
- Linergy TA
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- IP degree of protection
- IP20
- Number of tap-off outlets
- 166 tap-off points with Faston connectors per linear meter
- Provided equipment
- 1 lateral clamp; 2 clamps; 4 brass conductors with tap off point; Insulating duct
- Quantity per set
- Set of 1
- Poles description
- 4P
- Rated voltage
- 230 V
- Installation direction
- Vertical, operating position: lateral
- installation description
- Cubicle duct - width 300 mm
- [Ui] rated insulation voltage
- 660 V
- [Ie] rated operational current
- 32 A
- Length
- 1755 mm
- Height
- 85 mm
- Width
- 50 mm
- Product weight
- 1.62 kg
- Colour
- Light grey (RAL 7035)
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.0 cm
- Package 1 Width
- 9.0 cm
- Package 1 Length
- 179.0 cm
- Package 1 Weight
- 1.751 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 72
- Package 2 Height
- 54.0 cm
- Package 2 Width
- 180.0 cm
- Package 2 Length
- 202.0 cm
- Package 2 Weight
- 151.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- Flexible
- Yes
- RAL-number
- 7035
- Number of conductors (without earthing)
- 4
- Number of poles
- 4
- Degree of protection (IP)
- IP20
- Rated voltage AC 50 Hz
- 230 V
- Number of tap-off units
- 166
- Rated current AC 50 Hz
- 32 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481932839
- SAP 1200547069
- Code 82879620
