Front plate for 22mm Pressure-PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

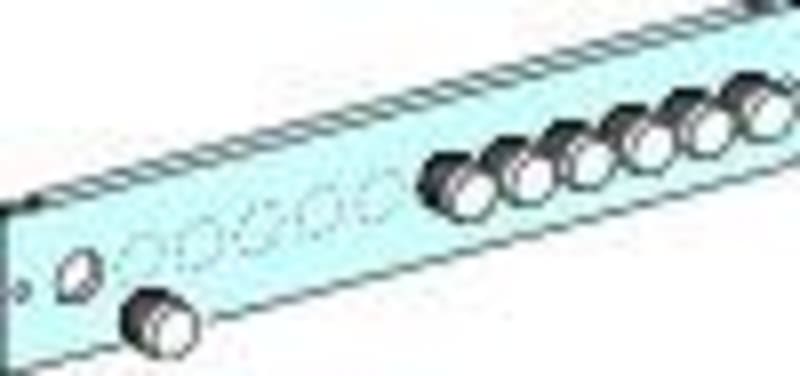

Schneider Electric LVS03914 Front plate For 12 pcs 22mm Push Buttons/lamps-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03914
- EAN / GTIN
- 3606481871589
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Human-switchboard interface: 22 mm diameter
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Number of vertical modules [50 mm]
- 2
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 100 mm
- Product weight
- 0.48 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 22 mm diameter 12 2; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 22 mm diameter 12 2; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 22 mm diameter 12 2
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 180
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 2
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481871589
- SAP 1200546773
- Code 82880054
Product Documentation
