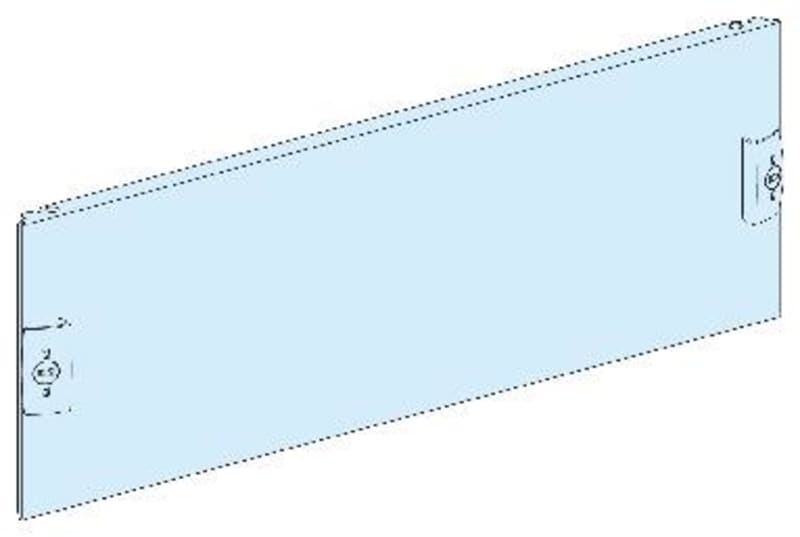

Sealed Front plate 2MODULES PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03802 — PLAIN FRONT PLATE W600/W650 2M.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03802
- EAN / GTIN
- 3606481873330
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT Pack 250 enclosure
- Type of front plate
- Plain
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm; Pack enclosure - width 600 mm
- Number of vertical modules [50 mm]
- 2
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 100 mm
- Product weight
- 0.48 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure; 600 mm PrismaSeT G wall-mounted enclosure; 650 mm 400 mm PrismaSeT P cubicle; 600 mm Prisma Pack 250 Pack enclosure
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 11.300 cm
- Package 1 Length
- 51.000 cm
- Package 1 Weight
- 495.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 21
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.987 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 252
- Package 3 Height
- 105.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 143.844 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of height units
- 2
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481873330
- SAP 1200546742
- Code 82880714
Product Documentation
More from Schneider Electric
Schneider Electric

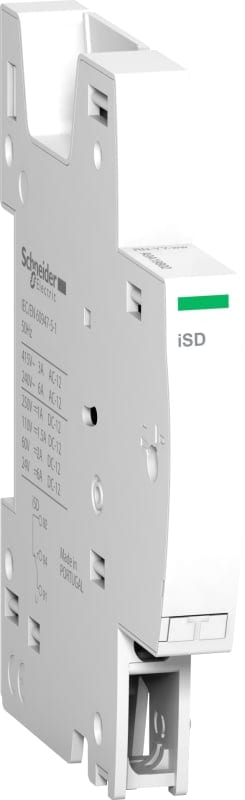

Schneider Electric ACTI9 IC60 RCBO - auxiliary contact - 1SD - AC/DC A9A19802
Schneider Electric

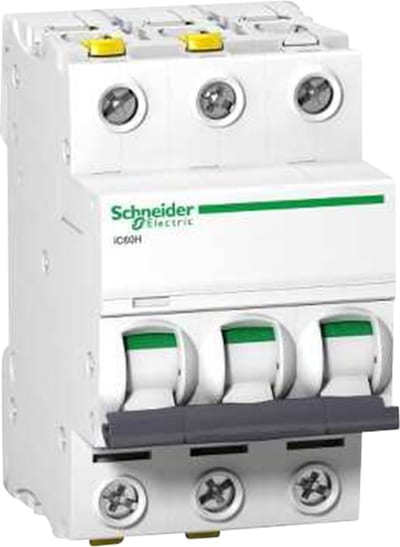

Schneider Electric A9F08363 ACTI9 IC60H Miniature Circuit Breaker 3P 63 A, Curve D
Schneider Electric

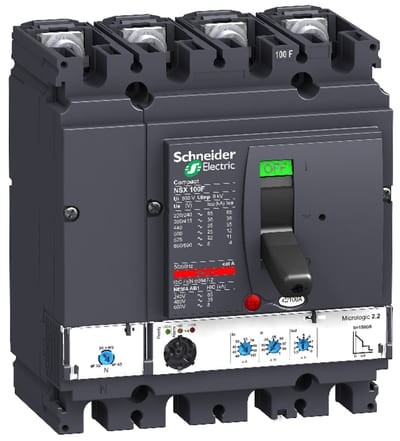

Schneider Electric circuit breaker ComPact NSX100N, 50 kA at 415 VAC, MicroLogic 2.2 trip unit 100 A, 4 poles 4D LV429805
Schneider Electric

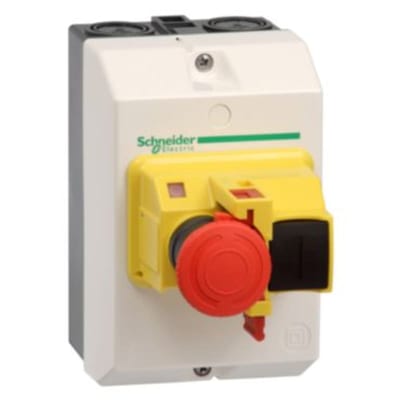

Schneider Electric GV2MCK04 TeSys GV2 - Enclosure for TeSys GV2ME - IP55 - fitted with Emergency stop
Schneider Electric

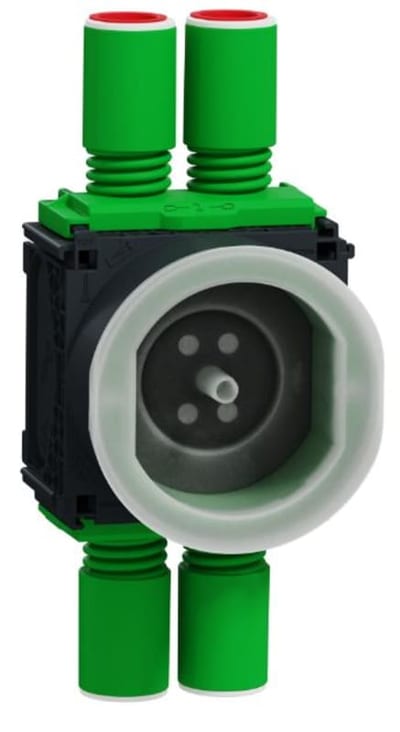

Schneider Electric Multifix Wall Box 44 mm 4 Flexible Inlets
IMT80259
Schneider Electric
Schneider Electric NSYS3D12640P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1200X600X400MM, IP66, IK10
Schneider Electric

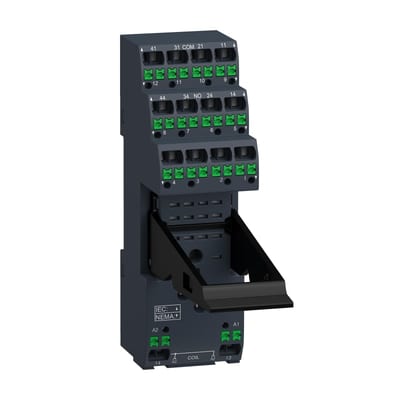

Plinth for RXM relay push-in
