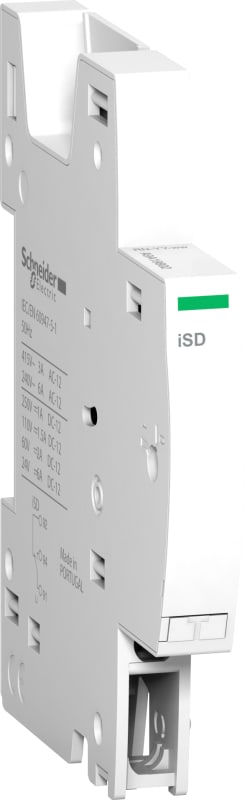

Schneider Electric ACTI9 IC60 RCBO - auxiliary contact - 1SD - AC/DC A9A19802

Schneider Electric A9A19802 SD fault signal contact for iC60 RCBOer.

Manufacturer part number (MPN)

A9A19802

EAN / GTIN

3606481158055

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product or component type

Fault contact

Device short name

iSD

Signal contacts composition

1 C/O

[In] rated current

6 A at 24 V, DC; 2 A at 60 V, DC; 1.5 A at 110 V, DC; 1 A at 250 V, DC; 6 A at 24...230 V, AC 50 Hz; 3 A at 415 V, AC 50 Hz

9 mm pitches

1

Standards

EN/IEC 60947-5-1

Range compatibility

Acti9 iC60 RCBO

mounting mode

Clip-on

Mounting support

DIN rail

Height

86 mm

Width

9 mm

Depth

71 mm

Product weight

35 g

Colour

White

Connections - terminals

Screw clamp terminal (bottom): 1 cable(s) 0.25…4 mm² - rigid; Screw clamp terminal (bottom): 1 cable(s) 0.25…2.5 mm² - flexible; Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - rigid; Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (bottom): 1 cable(s) 2.5 mm² - flexible with ferrule

Wire stripping length

6 mm for bottom connection

Tightening torque

0.6 N.m bottom

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

72

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481158055
• SAP 1200022327
• Code 81406515
