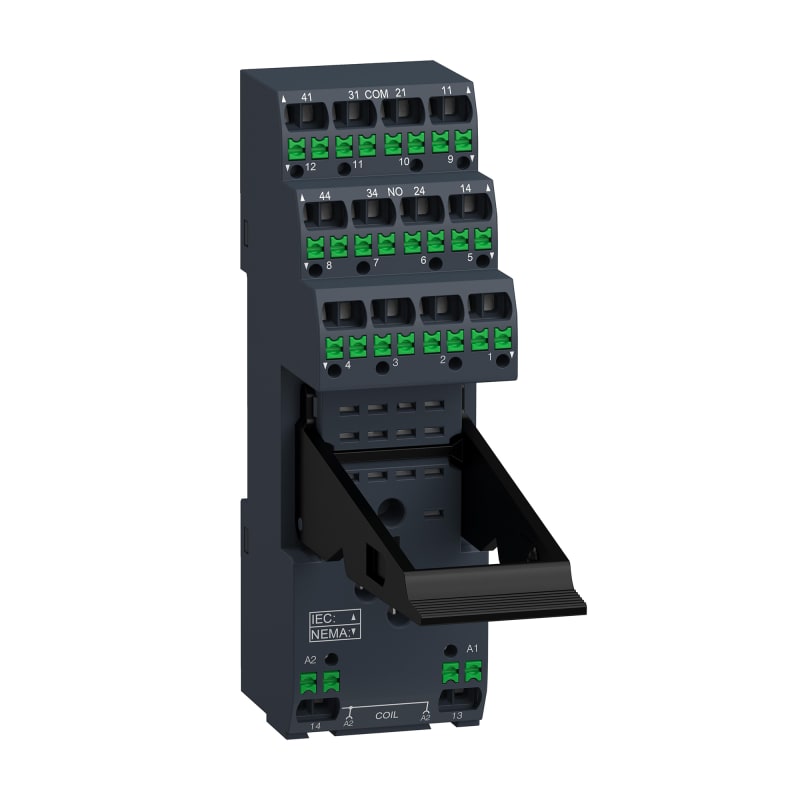

Plinth for RXM relay push-in

Schneider Electric RXZE14P Zelio plinth with push-in spring terminals for RXM relayer with 2 or 4 contacts.

Manufacturer part number (MPN)

RXZE14P

EAN / GTIN

3606481465764

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays; Harmony Timer Relays

Product compatibility

Plug-in relay RXM with 2 C/O contact; Plug-in relay RXM with 4 C/O contact

Device short name

RXZ

[Ith] conventional free air thermal current

12 A 2 C/O relays; 6 A 4 C/O relays

Product or component type

Socket

Contacts type and composition

4 C/O

[Ui] rated insulation voltage

250 V

[Ue] rated operational voltage

250 V conforming to IEC; 300 V conforming to UL

Connections - terminals

Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) flexible with cable end; Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Flat

Fixing mode

Clip-on (35 mm symmetrical DIN rail)

Length

98 mm

Contact terminal arrangement

Separate

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

31 mm

Height

85 mm

Product weight

0.080 kg

IP degree of protection

IP20

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

CSA; Lloyd's; UL; EAC

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

70

Country of origin

CN

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481465764
• SAP 1200464254
• Code 82524900
