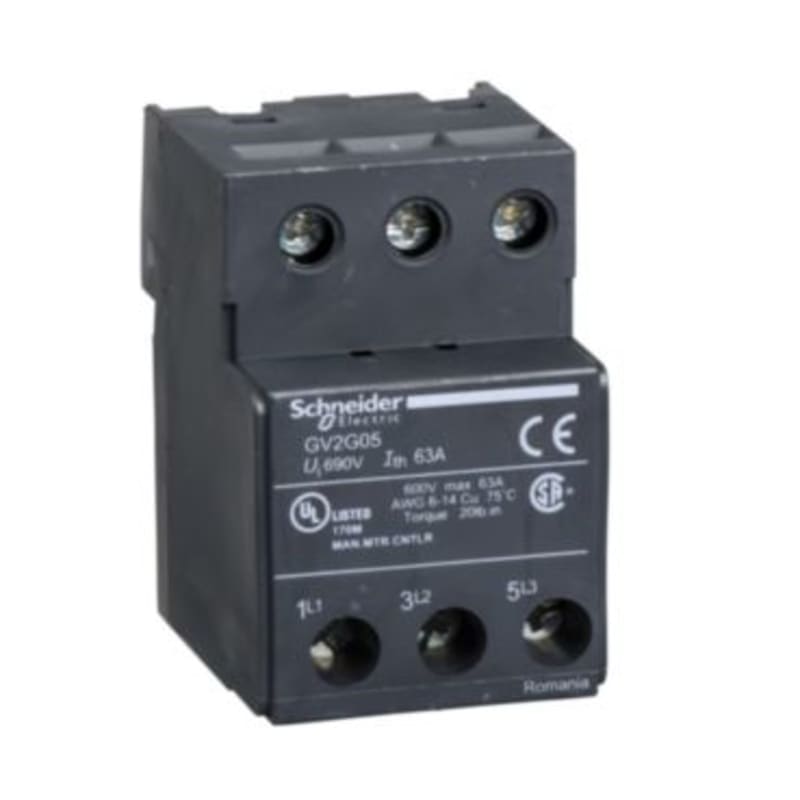

Schneider Electric GV2G05 TeSys GV2, TeSys D & TeSys U - terminal block - 3P - for GV1L3
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric GV2G05 TeSys GV2, TeSys D & TeSys U - terminal block - 3P - for GV1L3 is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 40 pcs; Range: Linergy; Product name: FT; Device short name: GV2G; Product or component type: Terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- GV2G05
- EAN / GTIN
- 3389110512946
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range
- Linergy
- Product name
- FT
- Device short name
- GV2G
- Product or component type
- Terminal block
- Accessory / separate part category
- Connection accessory
- Poles description
- 3P
- Range compatibility
- TeSys GV2; TeSys Deca; TeSys K; TeSys U
- [Ie] rated operational current
- 63 A
- Mounting location
- 35 mm DIN rail
- IP degree of protection
- IP20 conforming to IEC 60529
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-1
- Connections - terminals
- Screw clamp terminals 1 cable(s) (4 AWG) - solid; Screw clamp terminals 1 cable(s) 1.5…16 mm² - flexible with cable end; Screw clamp terminals 1 cable(s) 1.5…16 mm² - flexible without cable end; Screw clamp terminals 1 cable(s) 1.5…25 mm² - solid; Screw clamp terminals 2 cable(s) 1.5…4 mm² - flexible with cable end; Screw clamp terminals 2 cable(s) 1.5…6 mm² - solid; Screw clamp terminals 2 cable(s) 2.5…4 mm² - flexible without cable end; Screw clamp terminals 1 cable(s) (4 AWG) - flexible
- Tightening torque
- 1.7 N.m - on screw clamp terminals; 2.2 N.m - on connector
- Product weight
- 0.115 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 7.000 cm
- Package 1 Weight
- 120.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 40
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 5.009 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 640
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 93.220 kg
- Country of origin
- RO
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110512946
- SAP 1000040654
- Code 8522132
