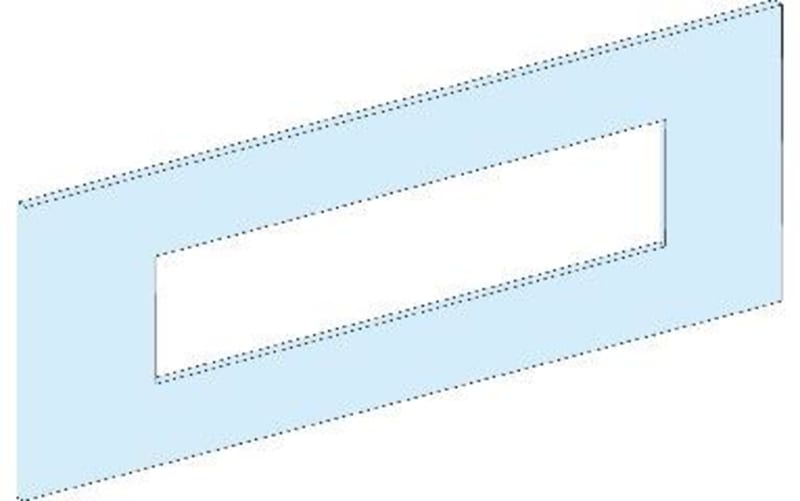

Front plate NSX400-630-VIGI-VERTICAL P
Part numberLVS03666EAN / GTIN3606481872432HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03666 Front plate for NSX400/630 with Vigimodul-vertical mounting-3P/4P-PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03666
- EAN / GTIN
- 3606481872432
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism - vertical installation
- Poles description
- 2 x 3P: mounting plate support: NSX400 vertical installation; 2 x 4P: mounting plate support: NSX400 vertical installation; 2 x 3P: mounting plate support: NSX630 vertical installation; 2 x 4P: mounting plate support: NSX630 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Linergy FC; Direct connection
- Number of vertical modules [50 mm]
- 9
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 450 mm
- Product weight
- 1.6 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 4P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 4P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 4P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 4P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 4P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 4P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 3P 2 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 4P 2 direct 15
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 9
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872432
- SAP 1200546723
- Code 82879578
