Schneider Electric

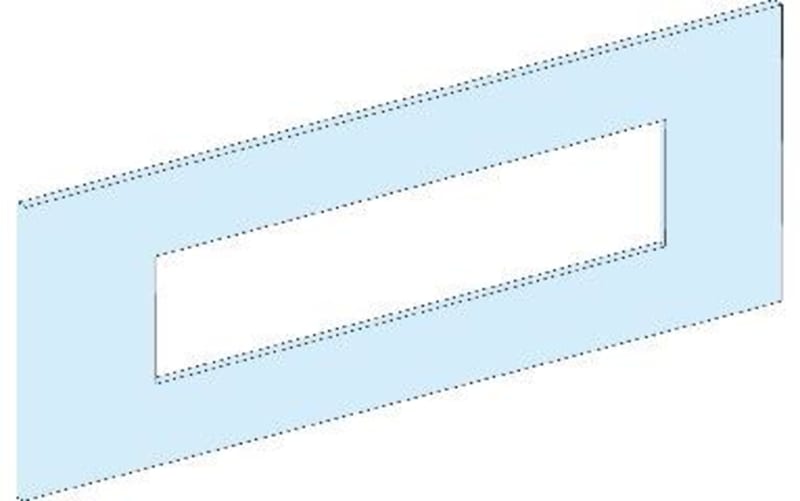

Front plate NSX400-630 Vertical PrismaSe P
Part numberLVS03663EAN / GTIN3606481866271HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03663 Front plate for NSX400/630-vertical mounting-3P/4P-PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03663
- EAN / GTIN
- 3606481866271
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism - vertical installation
- Poles description
- 2 x 3P: mounting plate support: NSX400 vertical installation; 2 x 4P: mounting plate support: NSX400 vertical installation; 2 x 3P: mounting plate support: NSX630 vertical installation; 2 x 4P: mounting plate support: NSX630 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection; Linergy FC
- Number of vertical modules [50 mm]
- 7
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 350 mm
- Product weight
- 1.22 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 3P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism vertical 4P 2 direct 11; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle vertical 4P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 3P 2 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism vertical 4P 2 direct 13
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 7
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481866271
- SAP 1200546722
- Code 82880802
Product Documentation
Document preview: Schneider Electric LVS03663 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT SF/SM 19" swing rack - 2000X800 mm - 40 modules NSYRSWC40
Schneider Electric
Mounting kit 240W (ABLPA02)
Schneider Electric
Schneider Electric variable speed drive, ATV930, 15kW, 400/480V, with braking unit, IP21 ATV930D15N4
Schneider Electric
Modular unit 36M 400X300X150
NSYDLCR36
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 400V AC 50/60Hz coil, screw clamp terminals LC1D38V7
Schneider Electric
PLA55 Metal mounting plate
NSYPMM55
Schneider Electric

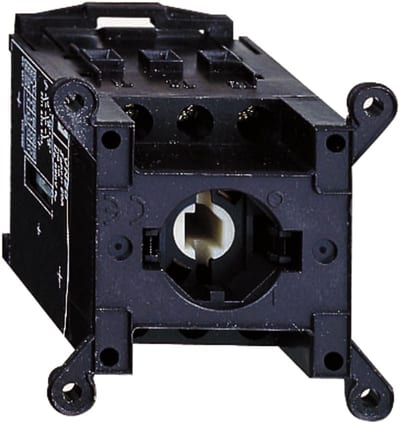

Switch Block 12A (VN12)
Schneider Electric

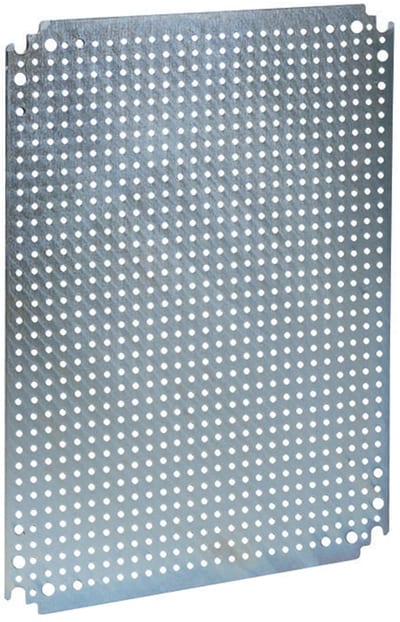

Mounting Plate 400X300 (NSYMF43)
