Modular unit 36M 400X300X150
Pricing
Request a quote
We reply within 24 hours
Product Description

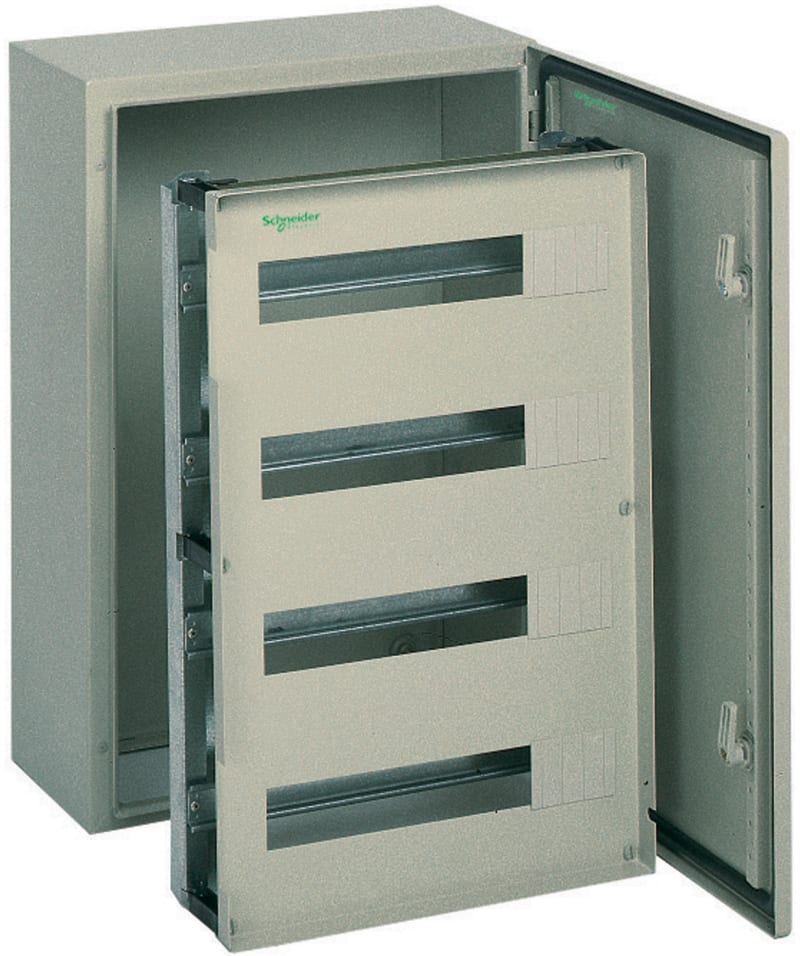

Schneider Electric NSYDLCR36 Modular unit 36M 400x300x150.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLCR36 EAN / GTIN: 3606480162657 Sales unit: pcs Dimensions: 400×300×150 Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Modular distribution application; Multi-purpose Product or component type: Chassis Device short name: DL For enclosure nominal dimensions: - Mounting location: Front of enclosure Range compatibility: PanelSeT CRN Device composition: 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 front panel; 3 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 3 Total number of 18 mm modules: 36 Type of front plate: Plain and cut-out plates Number of cut-out: 3 cut-outs Height: 355 mm Width: 255 mm Depth: 110 mm Number of Units in Package 1: 1 Number of Units in Package 2: 30 Warranty (in months): 18 With mounting plate: No Type of covering: With notch With cover: No Number of DIN-rails: 3 Number of modular spacings per DIN-rail: 12 With N-PE clamp: Yes Country of origin: Spain
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480162657
- SAP 1000317792
- Code 8342799
Product Documentation
