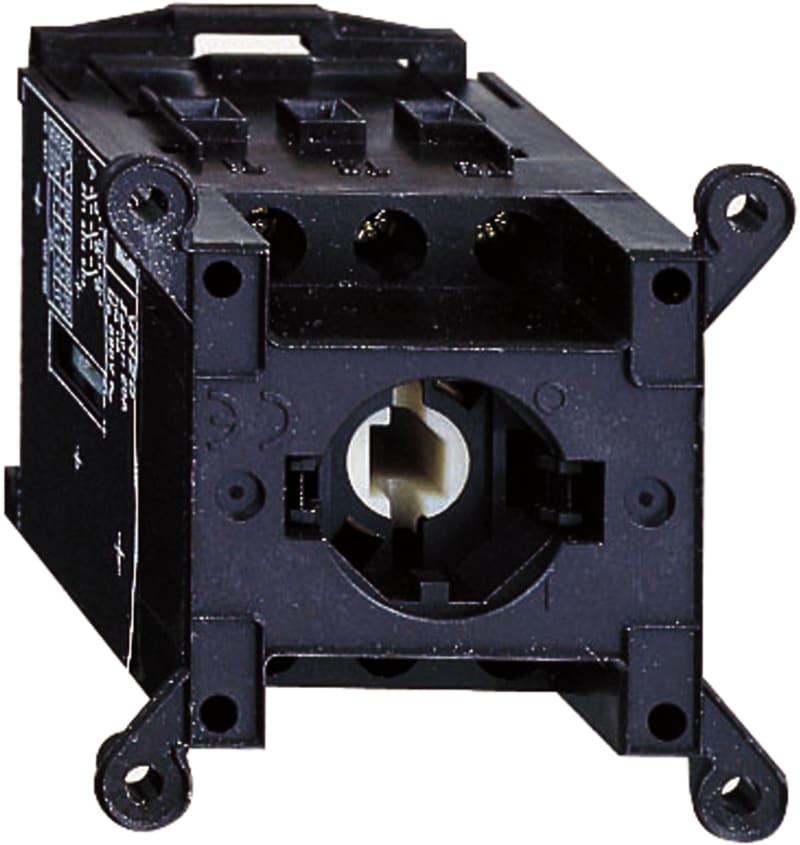

Switch Block 12A (VN12)

Schneider Electric VN12 Bryterblokk 3P 12A.

Manufacturer part number (MPN)

VN12

EAN / GTIN

3389110759839

Sales unit

pcs

Package quantity

24 pcs

Range

TeSys

Product name

TeSys VARIO

Product or component type

Switch body

Performance level

Standard

Poles description

3P

Contacts type and composition

3 NO

Network type

DC; AC

Network frequency

50/60 Hz

Mounting support

Symmetrical rail

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

[Ith] conventional free air thermal current

12 A

[Ithe] conventional enclosed thermal current

10 A

[Ie] rated operational current

8.1 A (AC-23) at 400 V

Rated operational power in W

3 kW at 400...415 V (AC-3); 4 kW at 500 V (AC-3); 4 kW at 690 V (AC-3); 1.5 kW at 230...240 V (AC-3); 5.5 kW at 500 V (AC-23A); 7.5 kW at 690 V (AC-23A); 3 kW at 230...240 V (AC-23A); 4 kW at 400...415 V (AC-23A)

Intermittent duty class

30

Making capacity ( I Rms)

120 A at 400 V AC-21A; 120 A at 400 V AC-22A; 120 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

0.5 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

140 A at 400 V duration: 1 s

Rated conditional short-circuit current

6 kA at 400 V - associated fuse 12 A aM; 6 kA at 400 V - associated fuse 12 A gG

Breaking capacity

120 A at 400 V (AC-22A); 120 A at 400 V (AC-23A); 120 A at 400 V (AC-21A)

Mechanical durability

50000 cycles

Electrical durability

30000 cycles DC-1...5; 50000 cycles AC-21

Suitability for isolation

Yes

Connections - terminals

Power circuit: screw clamp terminals4 mm² - solid; Power circuit: screw clamp terminals4 mm² - flexible - with cable end

Tightening torque

Power circuit: 7 N.m - on screw clamp terminals

Height

46.5 mm

Width

56 mm

Depth

62 mm

Product weight

0.11 kg

Standards

IEC 60947-3

Product certifications

UL; CSA; GL; UKCA

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6; Shocks 11 ms (15 gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Number of Units in Package 1

1

Number of Units in Package 2

24

Number of Units in Package 3

192

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
