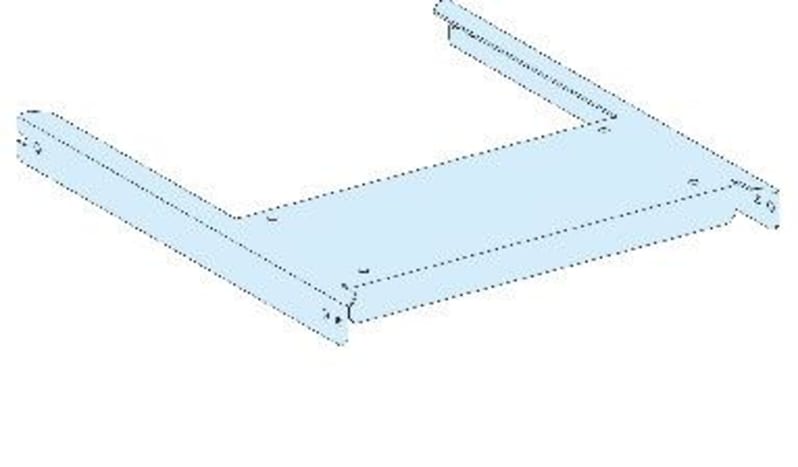

Mounting plate MTZ1 fast in 400 felt P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03489 Mounting plate for MTZ1-fast-vertical mounting-3P-PrismaSeT P-for 400mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03489
- EAN / GTIN
- 3606481871459
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 400 mm depth 400 mm
- Installed device
- Masterpact: fixed NT06...10 - control: toggle - vertical installation; Masterpact: fixed NT12 - control: toggle - vertical installation; Masterpact: fixed NT16 - control: toggle - vertical installation
- Poles description
- 1 x 3P: fixed NT06...10 vertical installation; 1 x 3P: fixed NT12 vertical installation; 1 x 3P: fixed NT16 vertical installation
- Number of vertical modules [50 mm]
- 36 module(s): NT06...10, front connection in 400 mm Widecubicle; 36 module(s): NT12, front connection in 400 mm Widecubicle; 36 module(s): NT16, front connection in 400 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 328 mm
- Height
- 30 mm
- Product weight
- 1.36 kg
- Functional unit
- 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 front connection 36 1037.5 mm; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 front connection 36 1037.5 mm; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 3P 1 front connection 36 1037.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481871459
- SAP 1200546692
- Code 82879522
Product Documentation
