Cable Compartment with door-PrismaSeTG -IP55 11MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

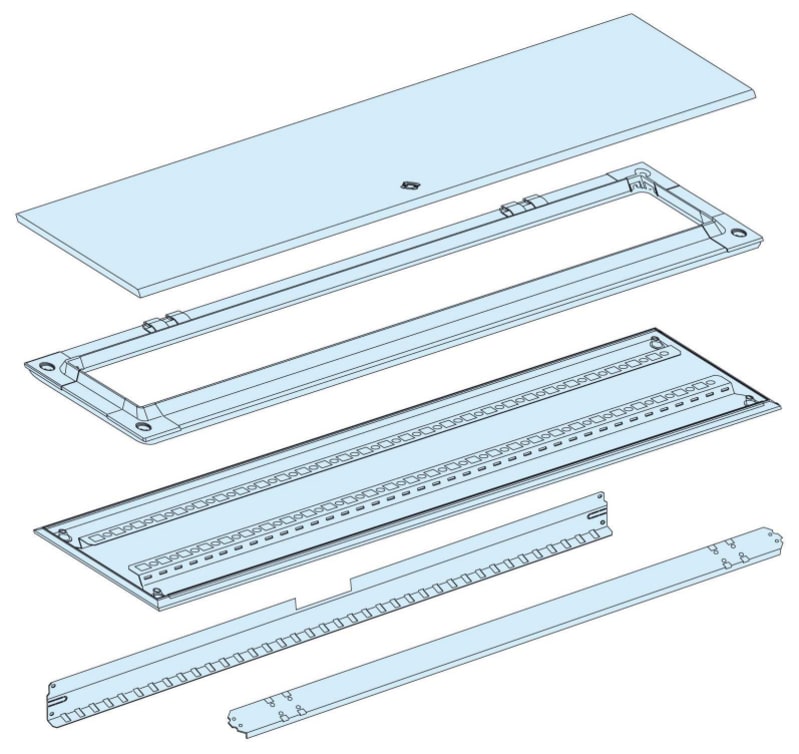

Schneider Electric LVS08343 Cable Compartment with door for PrismaSeT G Wall-mount cabinet 11-modules-width 300mm-IP55.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08343
- EAN / GTIN
- 3606481876669
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 11 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door; Rear panel
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form
- Provided equipment
- 1 x door for enclosure
- Additional information
- Can be combined side by side and one on top of another
- type of front plate
- Without
- Number of vertical modules [50 mm]
- 11
- Number of 18 mm modules per row
- 10
- [Ui] rated insulation voltage
- 1000 V
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Smooth
- Colour
- White (RAL 9001)
- Width
- 300 mm
- Height
- 650 mm
- Depth
- 260 mm
- Product weight
- 11.84 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 with door
- IK degree of protection
- IK10 with door conforming to EN/IEC 62262
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Warranty (in months)
- 18
- RAL-number
- 9003
- With mounting plate
- No
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material
- Steel
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481876669
- SAP 1200547532
- Code 82879833
Product Documentation
