Polyester mounting plate 500X400
Pricing
Request a quote
We reply within 24 hours
Product Description

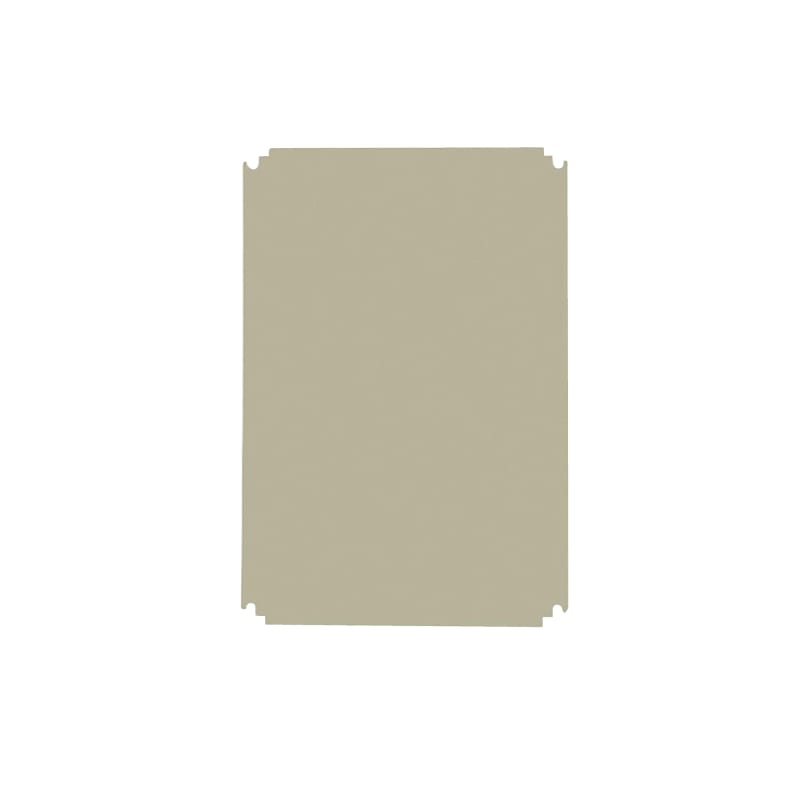

Schneider Electric NSYMPP54 polyester mounting plate 500x400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMPP54
- EAN / GTIN
- 3606480183492
- Sales unit
- pcs
- Dimensions
- 500×400 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Direct fixing on backstuds; Step slide
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM
- Quantity per set
- Set of 1
- Material
- Fibreglass reinforced polyester
- Colour
- Grey (RAL 7035)
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 50 kg
- Height
- Nominal: 465 mm; Enclosure nominal dimension: 500 mm
- Width
- Nominal: 350 mm; Enclosure nominal dimension: 400 mm
- thickness
- 4 mm
- Product weight
- 1.2 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Untreated
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480183492
- SAP 1200496515
- Code 82629384
