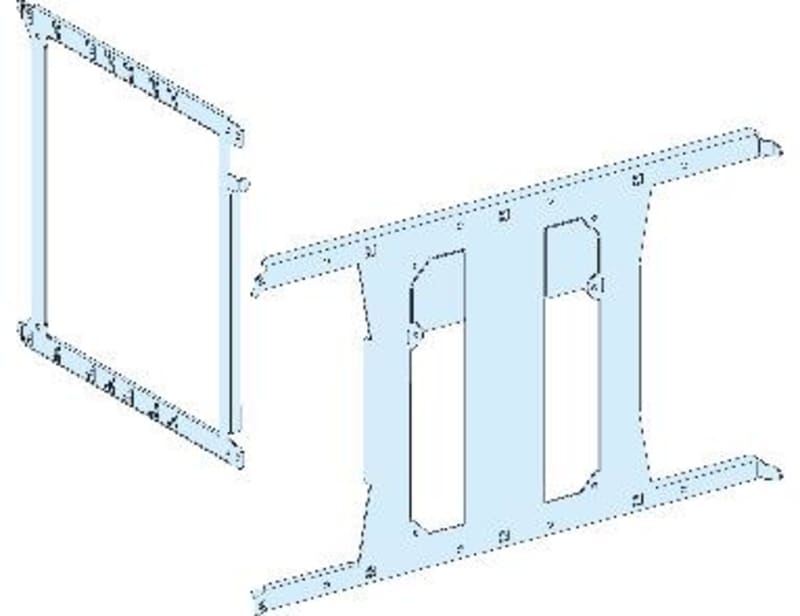

Schneider Electric LVS03480 MOUNTING PLATE FOR NS FIXED -3P/4P 1000A HORIZONTAL IN WIDTH 650
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS03480 MOUNTING PLATE FOR NS FIXED -3P/4P 1000A HORIZONTAL IN WIDTH 650 is listed under Enclosures / Mounting Plates. Sales unit: pcs; Package quantity: 6 pcs; Range: PrismaSeT; Range of product: PrismaSeT P; Product or component type: Mounting plate; Range compatibility: PrismaSeT PrismaSeT P cubicle.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03480
- EAN / GTIN
- 3606481874443
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 800 mm; Cubicle + duct - width 650 mm depth 400 mm
- Installed device
- ComPact: fixed NS630b...1000 - control: toggle - horizontal installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle - horizontal installation
- Poles description
- 1 x 3P: fixed NS630b...1000 horizontal installation; 1 x 4P: fixed NS630b...1000 horizontal installation
- Number of vertical modules [50 mm]
- 7 module(s): NS630b...1000, front connection in 650 mm Widecubicle + duct; 8 module(s): NS630b...1000, connection transfer assembly in 650 mm Widecubicle + duct; 7 module(s): NS630b...1000, rear connection in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 350 mm
- Product weight
- 2.84 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 front connection 7 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 connection transfer assembly 8 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 front connection 7 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 connection transfer assembly 8 12.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 3P 1 rear connection 7 12.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 rear connection 7 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 front connection 7 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 connection transfer assembly 8 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 front connection 7 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 connection transfer assembly 8 12.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 4P 1 rear connection 7 12.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 rear connection 7 12.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 35.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 2.992 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 60
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 193.520 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874443
- SAP 1200546686
- Code 82880723
