Mounting plate NSX630 Horizontal-motor-Omk. P
Pricing
Request a quote
We reply within 24 hours
Product Description

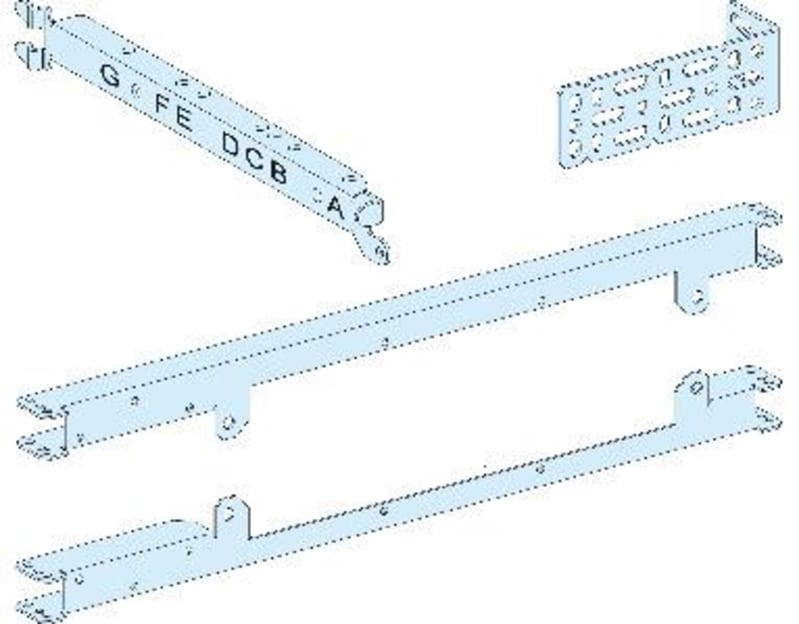

Schneider Electric LVS03457 Mounting plate for NSX400/630-horizontal mounting-motor-changeover switch-3P/4P-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03457
- EAN / GTIN
- 3606481874405
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- Source changeover: fixed NSX400...630 source changeover without earth leakage protection - control: remote control - horizontal installation
- Poles description
- 2 x 3P: fixed NSX400...630 source changeover horizontal installation; 2 x 4P: fixed NSX400...630 source changeover horizontal installation
- Number of vertical modules [50 mm]
- 10 module(s): NSX400...630 source changeover without earth leakage protection , direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 500 mm
- Product weight
- 2.82 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed remote control horizontal 3P 2 direct 10 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed remote control horizontal 4P 2 direct 10 12.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 32
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874405
- SAP 1200546682
- Code 82879605
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT PLA Adapter Plate, Depth 320 mm, 2-Door Bottom
NSYPTZ32P
Schneider Electric
Schneider Electric basic digital output kit STB - 24 V DC - 6 O STBDDO3605K
Schneider Electric
Schneider Electric PanelSeT SF/SM canopy - 1000X300 mm NSYSC1030
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 12A, 250 V DC coil, snap-in terminals LC1D12AUD
Schneider Electric

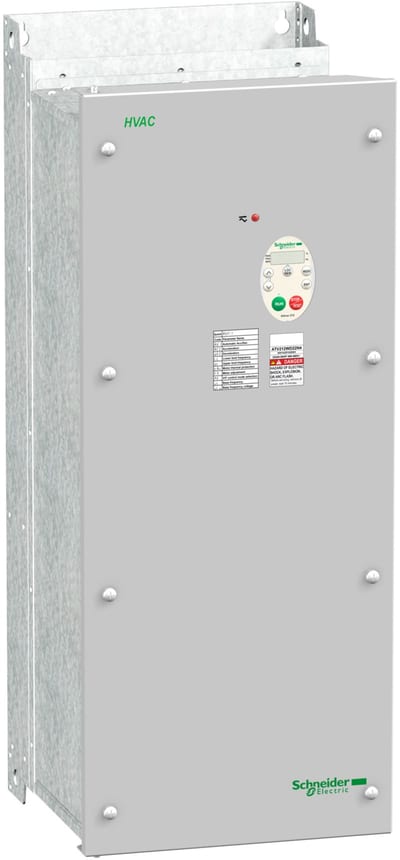

Schneider Electric variable speed drive, Altivar 212, 30kW, 40hp, 480V, 3 phases, with EMC class C2, IP55 ATV212WD30N4
Schneider Electric

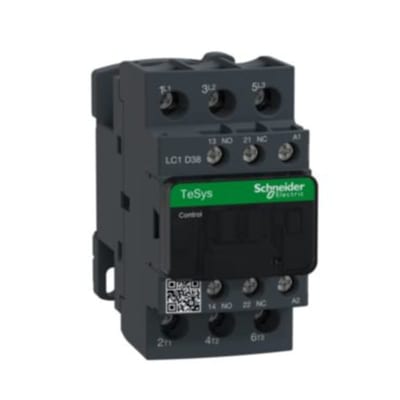

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 440V AC 50/60Hz coil, screw clamp terminals LC1D38R7
Schneider Electric

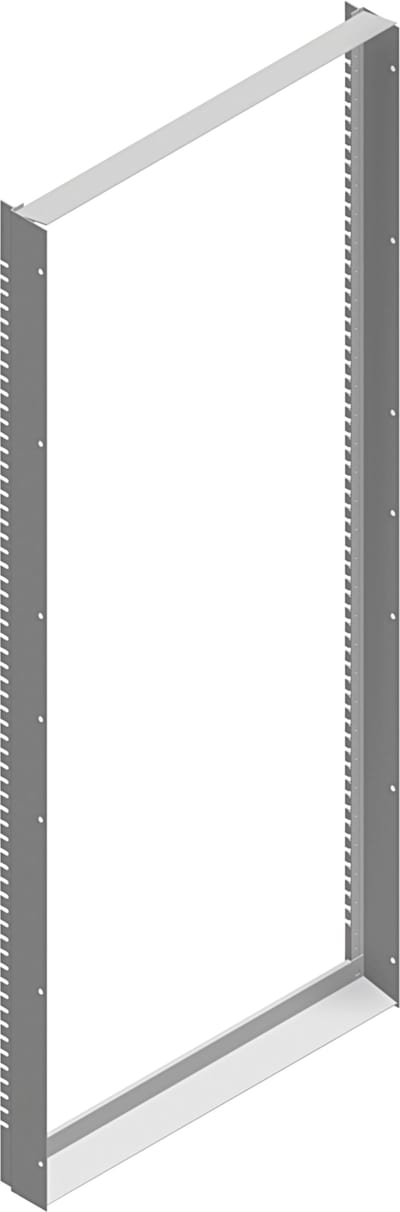

Modular frame 16X6 (NSYCSH166)
Schneider Electric

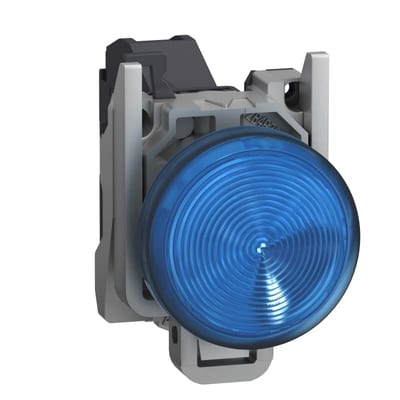

Schneider Electric Complete pilot light, Harmony XB4, Explosive atmosphere, blue LED, 24...254V XB4BVBM6GEX
