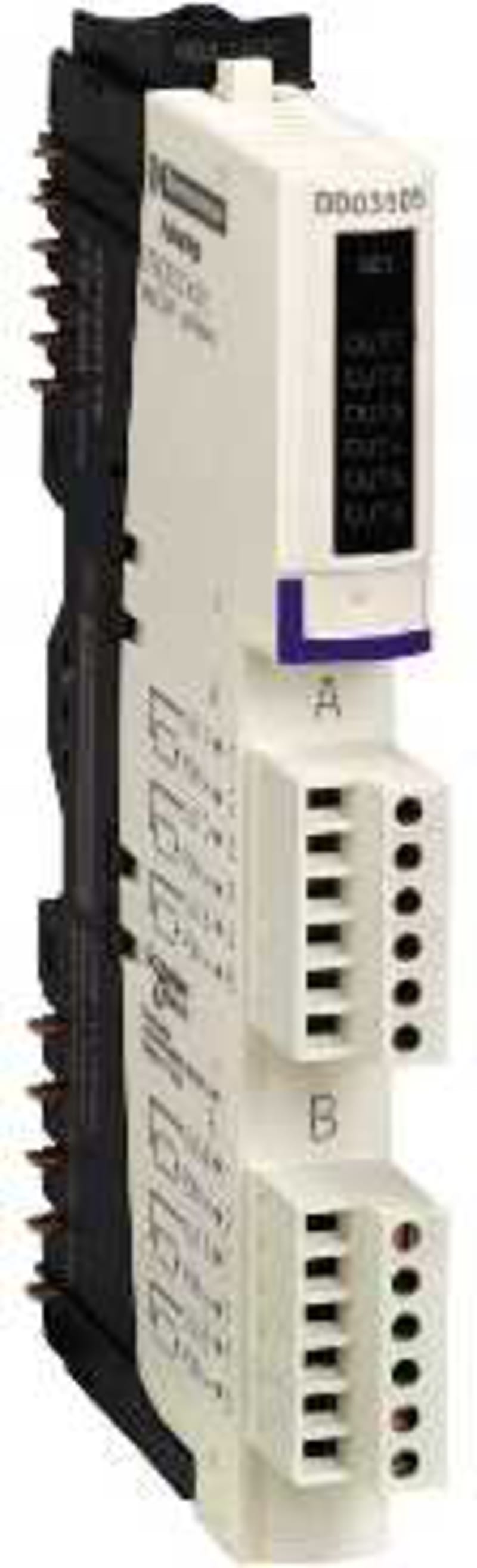

Schneider Electric basic digital output kit STB - 24 V DC - 6 O STBDDO3605K

Schneider Electric STBDDO3605K STB kit 6 out, 24VDC, 0,25A, basic.

Manufacturer part number (MPN)

STBDDO3605K

EAN / GTIN

3595863949346

Sales unit

pcs

Package quantity

36 pcs

Voltage

24 V DC

Range of product

Modicon STB distributed I/O solution

Product or component type

Basic digital output kit

Kit composition

STBDDO3605 module; STBXTS2100, 6-terminal spring clamp connector; STBXBA1000 base; STBXTS1100, 6-terminal screw type connector

Product compatibility

I/O base STBXBA1000; Power distribution module STBPDT3100/3105

Range compatibility

Logic/motion controller - Modicon M262; Modicon M580; Third party

Device application

Industrial application

Discrete output number

6

Discrete output logic

Positive logic (source)

Discrete output voltage

24 V DC for solid state

Output voltage

19.2...30 V DC

Absolute maximum voltage

56 V 1.3 ms

Discrete output current

250 mA

Response time on output

550 µs off to on; 900 µs on to off

Maximum leakage current

0.4 mA 30 V DC at state 0

Output protection type

Power protection integrated fuse on PDM time lag 5 A; Short-circuit protection; Reverse polarity protection; Thermal overload protection

Power supply type

Power distribution module

Typical current consumption

90 mA at 5 V DC

Electrical connection

Screw terminal

Isolation between channels and bus

1500 V for 1 minute

Surge current

2.5 A 0.5 ms

Reset

Manual or automatic reset COM fault

Overvoltage category

II

Local signalling

1 LED (green) for module status (RDY); 1 LED per channel (green) for channel status (OUT1 to OUT6)

Height

13.9 mm

Width

128.3 mm

Depth

70 mm

Product weight

0.114 kg

IP degree of protection

IP20

Marking

CE

Product certifications

UL; CSA; FM Class 1 Division 2

Standards

IEC 61131-2

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Vibration resistance

3 gn (f = 58…150 Hz) on 35 x 7.5 mm symmetrical DIN rail; 5 gn (f = 58…150 Hz) on 35 x 15 mm symmetrical DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

28

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Number of digital outputs

6

Digital inputs configurable

No

Digital outputs configurable

Yes

Permitted voltage at input

19.2–30 V

Type of voltage (input voltage)

AC/DC

Output current

0.25 A

Permitted voltage at output

24 V

Type of output voltage

AC/DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

Yes

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

Yes

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Time delay at signal change

0.55–0.9 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
