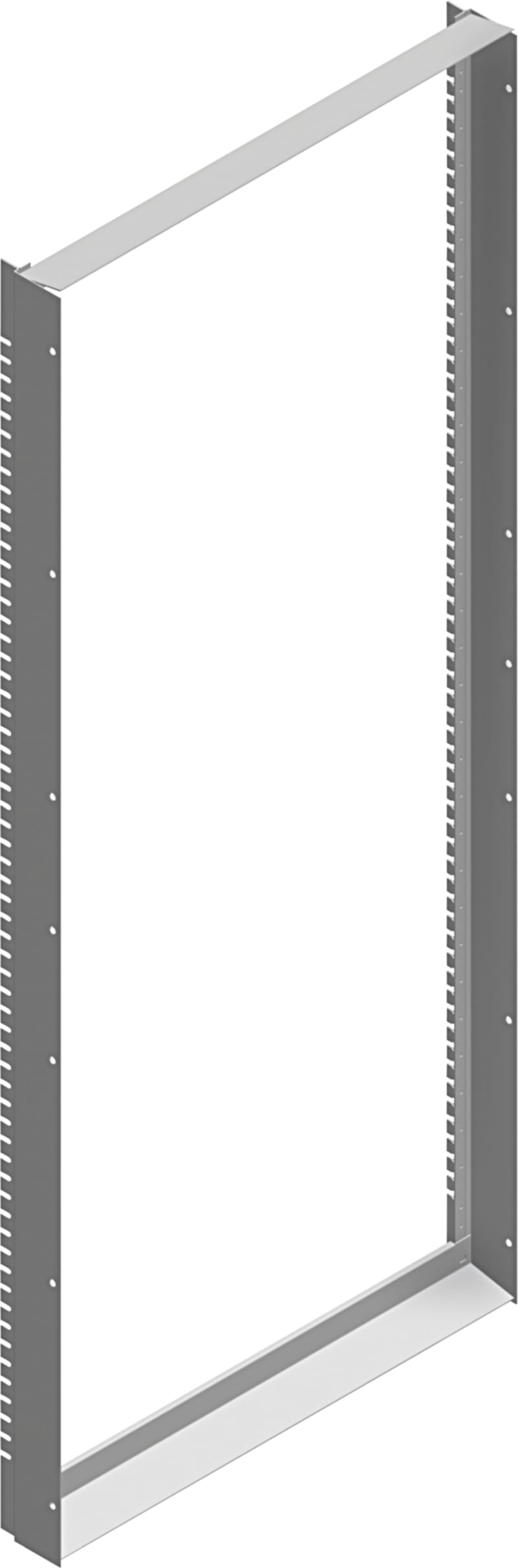

Modular frame 16X6 (NSYCSH166)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCSH166 Modular Frame 16X6.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCSH166
- EAN / GTIN
- 3606480063770
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose
- Product or component type
- Coupling kit
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT SM; PanelSeT SF
- Device composition
- fixing elements; 2 horizontal crossbars; 2 vertical uprights
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element
- Total number of 18 mm modules
- 216
- Height
- Real: 1505 mm; Nominal: 1600 mm
- Width
- Real: 502 mm; Nominal: 600 mm
- Depth
- Real : 100 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 157.500 cm
- Package 1 Weight
- 6.626 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 30
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 231.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Module rack
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 1600 mm
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480063770
- SAP 1000090352
- Code 8846735
