Schneider Electric

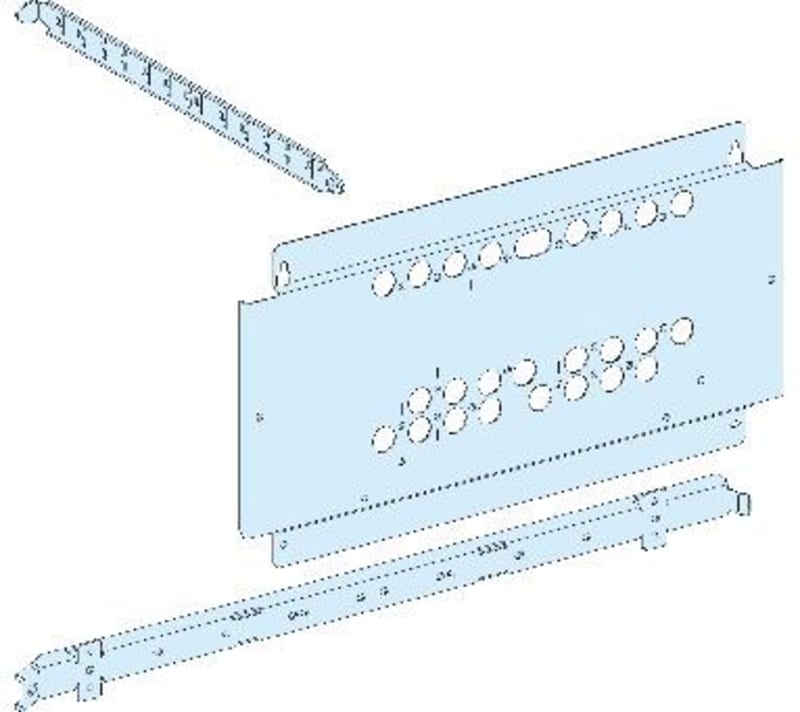

Mounting plate NSX250 vertical Changeover switch P
Part numberLVS03428EAN / GTIN3606481874351HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03428 Mounting plate for NSX100-250-vertical mounting-changeover switch-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03428
- EAN / GTIN
- 3606481874351
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- ComPact: fixed INS250 source changeover - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 source changeover - control: mechanical interlock - vertical installation; ComPact: fixed INV250 source changeover - control: mechanical interlock - vertical installation; Source changeover: fixed NSX100...250 source changeover - control: mechanical interlock - vertical installation
- Poles description
- 2 x 3P: fixed INS250 source changeover vertical installation; 2 x 4P: fixed INS250 source changeover vertical installation; 2 x 3P: fixed INV250 source changeover vertical installation; 2 x 4P: fixed INV250 source changeover vertical installation; 2 x 3P: fixed NSX100...250 source changeover vertical installation; 2 x 4P: fixed NSX100...250 source changeover vertical installation
- Number of vertical modules [50 mm]
- 9 module(s): INS250 source changeover, direct in 650 mm Widecubicle; 9 module(s): INV250 source changeover, direct in 650 mm Widecubicle; 10 module(s): NSX100...250 source changeover, direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 536 mm
- Height
- 289 mm
- Product weight
- 3.3 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed direct front rotary handle vertical 3P 2 direct 9 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed direct front rotary handle vertical 4P 2 direct 9 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed mechanical interlock vertical 3P 2 direct 9 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 source changeover fixed mechanical interlock vertical 4P 2 direct 9 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 source changeover fixed mechanical interlock vertical 3P 2 direct 9 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 source changeover fixed mechanical interlock vertical 4P 2 direct 9 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX100...250 source changeover fixed mechanical interlock vertical 3P 2 direct 10 112.5 mm; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX100...250 source changeover fixed mechanical interlock vertical 4P 2 direct 10 112.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Number of Units in Package 3
- 36
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874351
- SAP 1200546677
- Code 82880283
