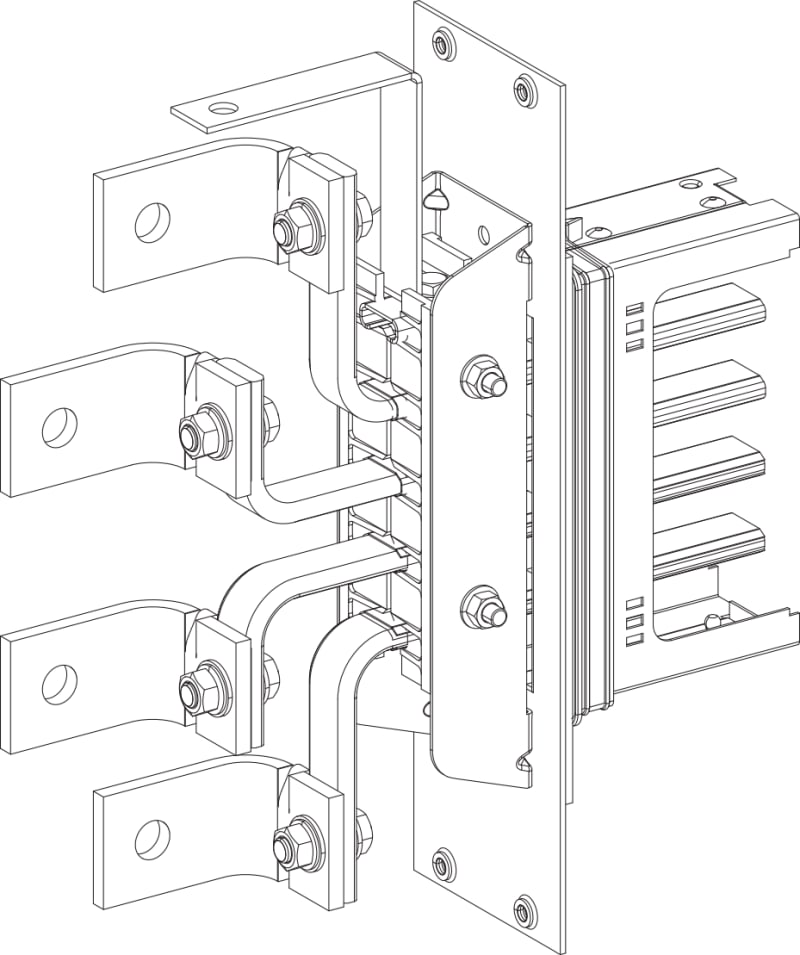

Schneider Electric Flange feed unit, Canalis KSA400, aluminium, 400A, right or left mounting, without line protection, 3L+N+PE, RAL9001 KSA400AE4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA400AE4 Tavletilkopling 400A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA400AE4
- EAN / GTIN
- 3606480004483
- Sales unit
- pcs
- Rated current
- 400 A
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 400 A
- Offer type
- Advanced; Rising main
- Product or component type
- Flange feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 400 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Right; Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Bar
- Width
- 279.5 mm
- Depth
- 81 mm
- Height
- 334 mm
- Product weight
- 2.1 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 279.5 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 400 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480004483
- SAP 1200721747
- Code 83835716
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, TMD trip unit 80A C10V3TM080
Schneider Electric
Push-Button Head with CAP, Black
ZA2BP2
Schneider Electric
Schneider Electric Miniature plug-in relay, 12 A, 2 CO, 48 V AC RXM2AB1E7
Schneider Electric
Spacer M8 height 15 (NSYEX158)
Schneider Electric
NG125L/D 20-3 Modular Power Switch
18850
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MA trip unit 12.5A C10V3MA013
Schneider Electric

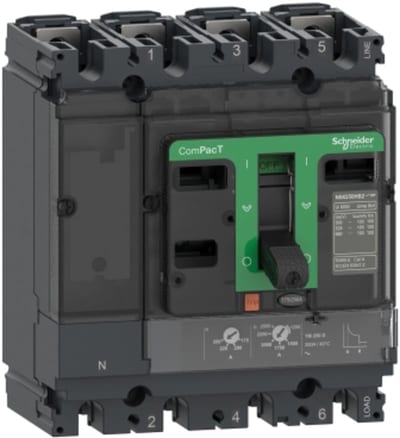

Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 32A C10N4TM032
Schneider Electric

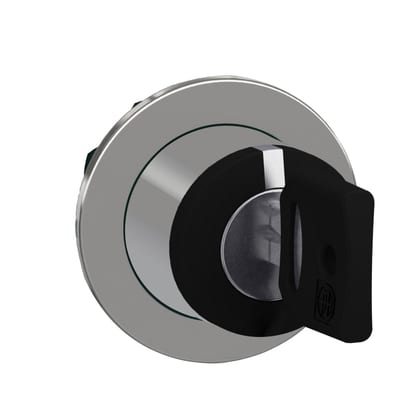

Key grip, flush 3-Pos 455 (ZB4FG03)
