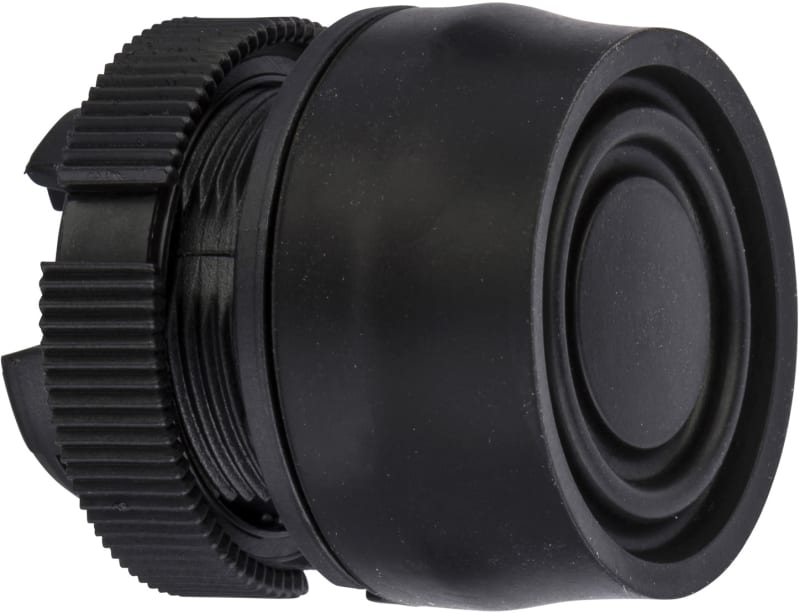

Push-Button Head with CAP, Black
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZA2BP2 Push-Button Head With Cap Black.
Technical Specifications
- Manufacturer part number (MPN)
- ZA2BP2
- EAN / GTIN
- 3389110647969
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony XAC
- Product or component type
- Head for push-button
- Component name
- XACA
- Marking
- Unmarked
- Operator additional information
- Booted
- Cap/operator or lens colour
- Black
- Product compatibility
- XACB
- Mounting location
- Front of enclosure
- Sale per indivisible quantity
- 1
- Standards
- UL 508; CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-32
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Product weight
- 0.025 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Black/white/red
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- High
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110647969
- SAP 1000043486
- Code 8819211
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Miniature plug-in relay, 12 A, 2 CO, 48 V AC RXM2AB1E7
Schneider Electric
Spacer M8 height 15 (NSYEX158)
Schneider Electric
NG125L/D 20-3 Modular Power Switch
18850
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MA trip unit 12.5A C10V3MA013
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 32A C10N4TM032
Schneider Electric
Key grip, flush 3-Pos 455 (ZB4FG03)
Schneider Electric

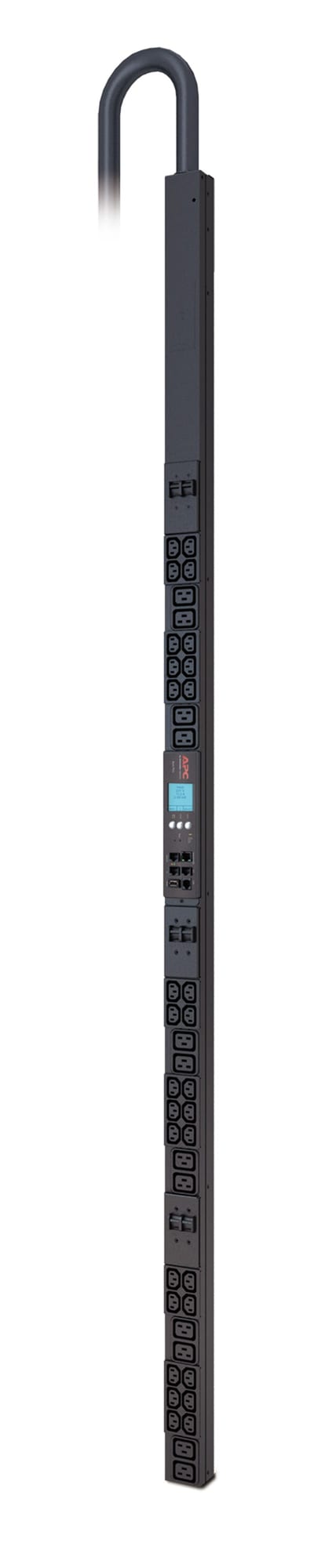

Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19 AP8887
Schneider Electric

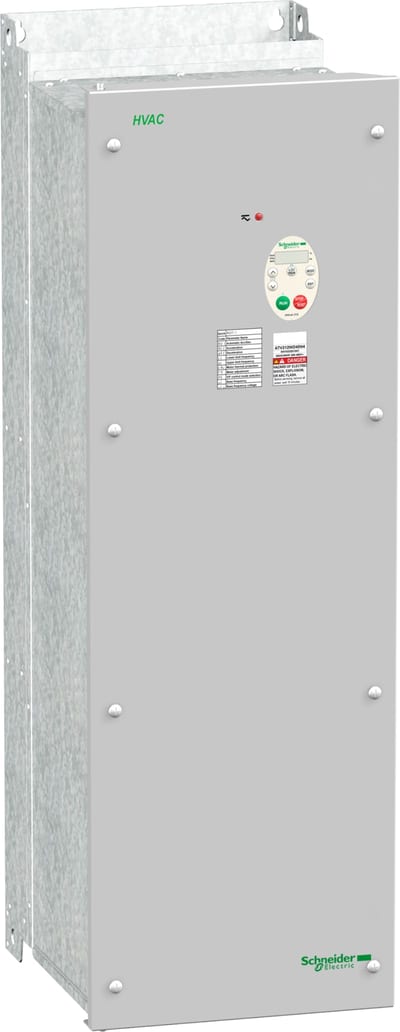

Schneider Electric variable speed drive ATV212 - 45kW - 60hp - 480V - 3PH - EMC class C1 - IP55 ATV212WD45N4C
