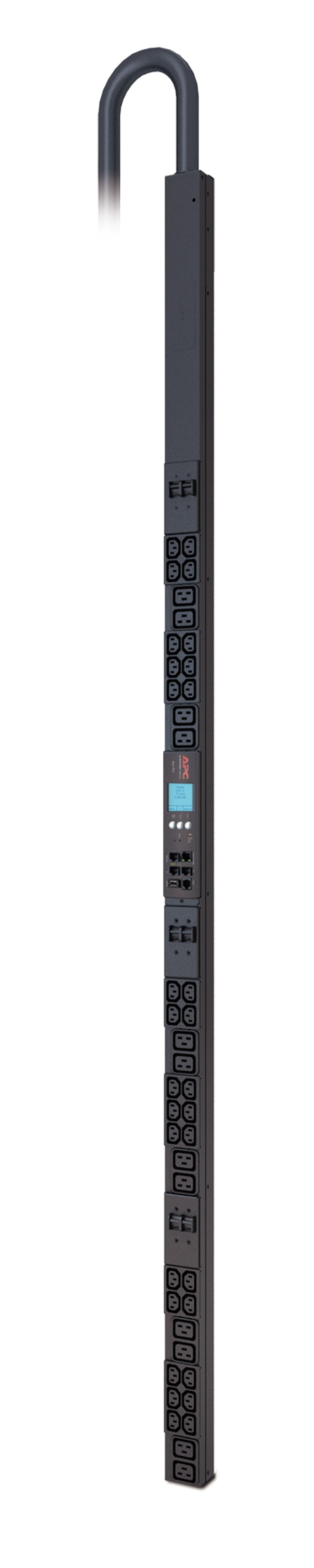

Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19 AP8887

Schneider Electric AP8887 APC by Schneider Electric.

Manufacturer part number (MPN)

AP8887

EAN / GTIN

0731304292432

Sales unit

pcs

Presentation

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Colour

Black

Product or component type

PDU

PDU type

Metered

Cord length

1.82 m

Number of cables

1

Provided equipment

Installation guide; Rack mounting brackets; Serial configuration cable; Safety guide

Input Voltage

400 V 3 phases

Height

1829 mm

Width

56 mm

Output Voltage

240 V

Depth

51 mm

Product weight

9.6 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

IEC 60309 30 A 3P + N + E

mounting mode

Rack-mounted

Rack units

0U

Mounting position

Vertical

[In] rated current

24 A

Max line current

30 A

Input current limits

30 A

Load capacity

17300 VA

Network frequency

50/60 Hz

Outlet type and quantity

30 IEC 60320 C13 ; 12 IEC 60320 C19

Product certifications

cUL listed; UL listed; VCCI class A

Standards

EN 55022 class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC part 15 class A; ICES-003

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

214.9 cm

Package 1 Width

11.2 cm

Package 1 Length

22.1 cm

Package 1 Weight

13.6 kg

Country of origin

IN

Warranty (in months)

24

With surge protection module

No

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Cable length

1.8 m

Number of C13 socket outlets

30

Number of C19 socket outlets

12

Supply voltage

415 V

Mains filter

No

Switchable

Yes

With meter

Yes

Control function

Yes

SNMP

Yes

Interface ethernet

Yes

With display

Yes

With LED indication

Yes

With fuse

Yes

Ampere meter

Yes

Temperature measurement

No

With mounting material

Yes

HS Code

8537.10

• EAN 0731304292432
• SAP 1200723110
• Code 83853221
